crAPI¶
Trying this lab out to come up with templates and template generation logic for apimap. As such, not all challenges are attempted. crAPI is also used to demonstrate how apimap template for crAPI can be used for API testing, PoC writing.
We also did not come up with templates for brute-forcing of fuzzing. While it is possible to do such tasks with apimap we believe that it is not optimal and there are more effective tools out there.
BOLA Vulnerabilities¶
Challenge 1 - Access details of another user’s vehicle¶
To solve the challenge, you need to leak sensitive information of another user’s vehicle.
Since vehicle IDs are not sequential numbers, but GUIDs, you need to find a way to expose the vehicle ID of another user. Find an API endpoint that receives a vehicle ID and returns information about it.
Upon logging in we noticed that there is an /identity/api/v2/vehicle/{uuid}/location API.
This API gets the coordinates of the car.
We can test this by keying another valid UUID. To get another UUID we would need to rely on #Challenge 4 - Find an API endpoint that leaks sensitive information of other users.

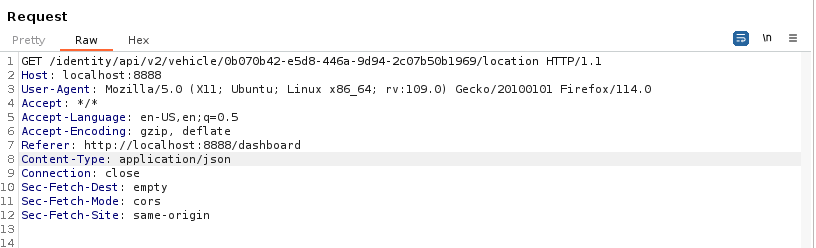

Using a valid vehicleid we attempt to check vehicle location unauthenticated.

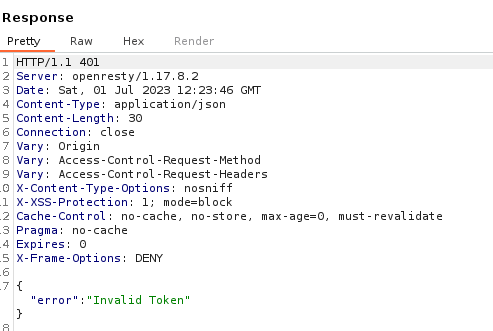

Seems like we will be given a 401 Error, with "Invalid Token"

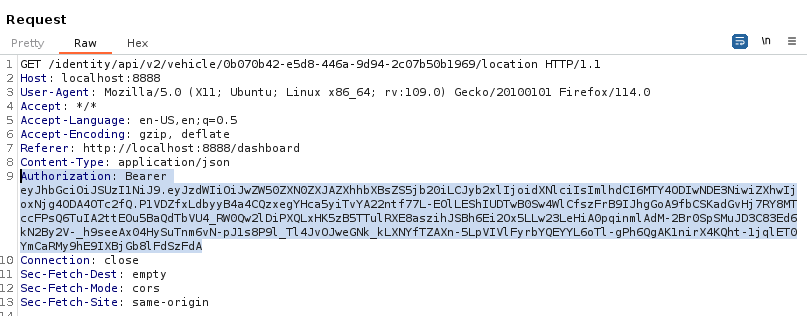

We then replayed the request for our own vehicle with our own token.

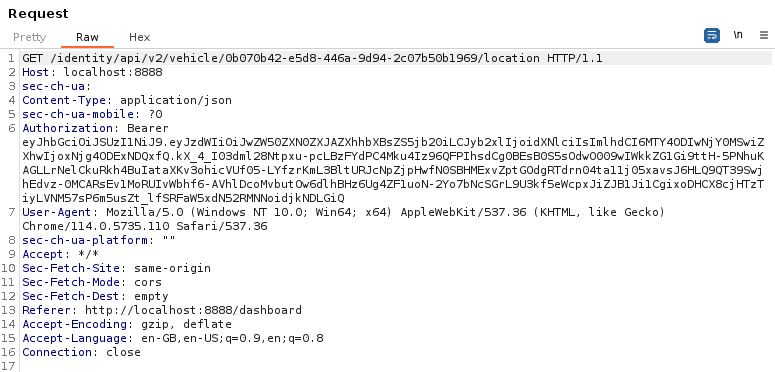

Using the same Authorization token, we attempt to replay another valid vehicleid

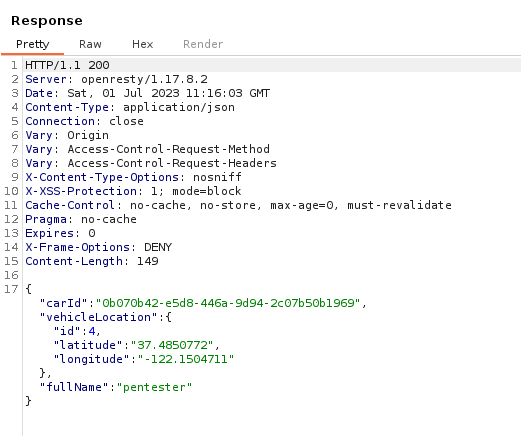

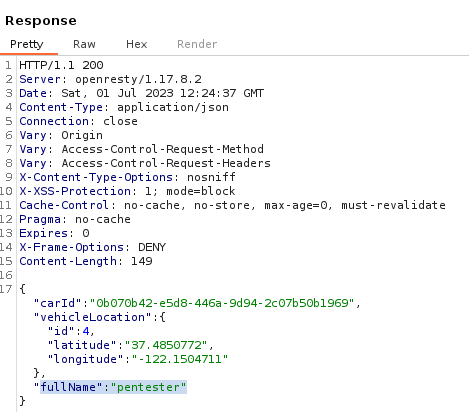

As can be seen from the response, we are able to get another car's information.
Challenge 2 - Access mechanic reports of other users¶
crAPI allows vehicle owners to contact their mechanics by submitting a "contact mechanic" form. This challenge is about accessing mechanic reports that were submitted by other users.
We start our analysis of mechanic report by first submitting a report of our own.

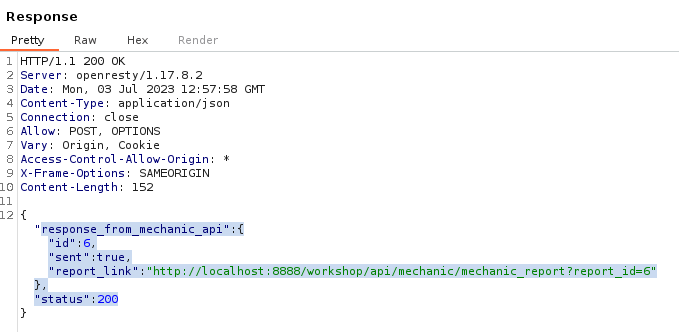

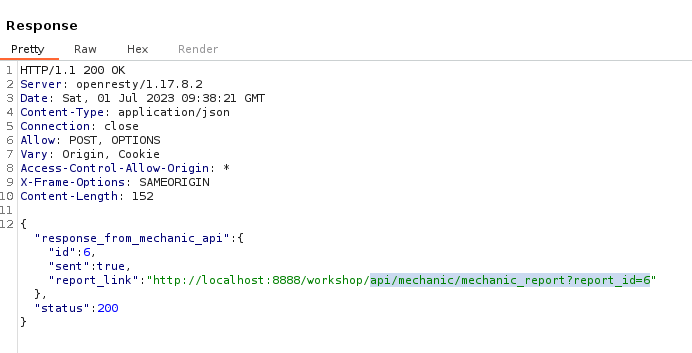

We noticed in the response, there is an /api/mechanic/mechanic_report?report_id=6. This is not in the user interface we have.
We visited the link, and it seems like we are able to access our own report with no token needed!

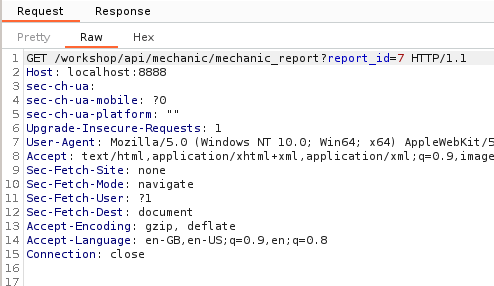

We noticed that the report number is sequential. Hence we attempted to brute-force used intruder to retrieve all other reports.
Retrieving report_id=2

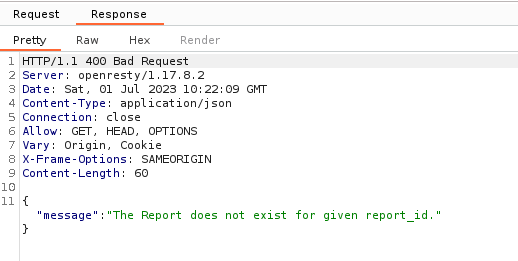

Seems like there are only 6 reports.
Broken User Authentication¶
Challenge 3 - Reset the password of a different user¶
Find an email address of another user on crAPI
Brute forcing might be the answer. If you face any protection mechanisms, remember to leverage the predictable nature of REST APIs to find more similar API endpoints.
We tried the forget password function and it seems like there are API calls are as follows:
/identity/api/auth/forget-password

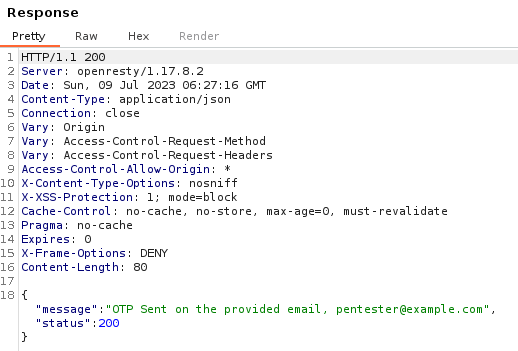

Shown below is Request/Response when a valid email is sent

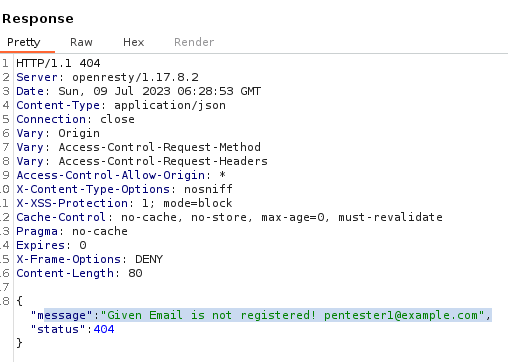

Then we tried to send an invalid email and the following is the Response.
This in itself is an issue. The error message is overly verbose and it can help in brute-forcing the email.
/identity/api/auth/v3/check-otp

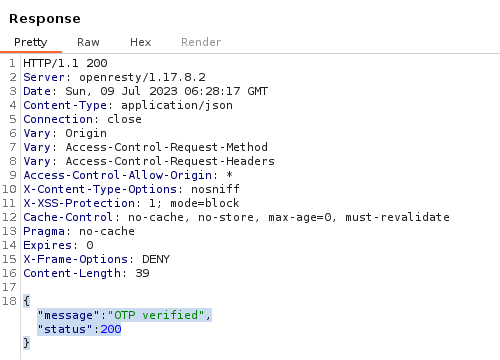

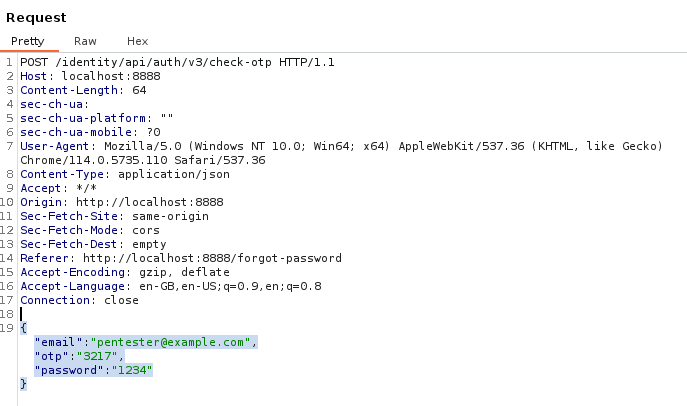

Shown below is the Request/Response of a successful OTP password change.

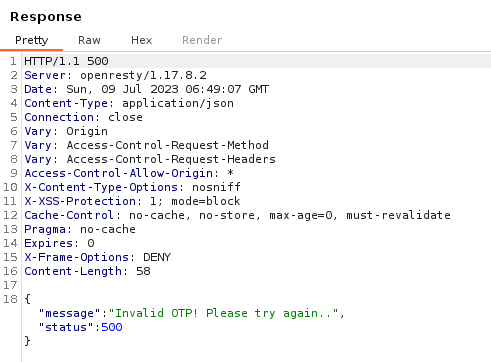

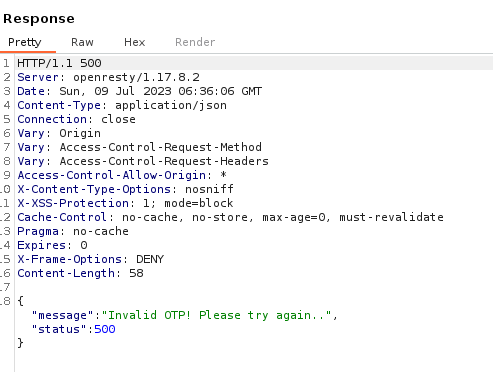

Then a response when we sent invalid OTP.
We can skip the brute-forcing of valid email since #Challenge 4 - Find an API endpoint that leaks sensitive information of other users is one such API that leaks the email address of other users.
As such, we will only need to send a password reset request for an email and brute-force the OTP (4 numeric digits - 10000 possibilities).

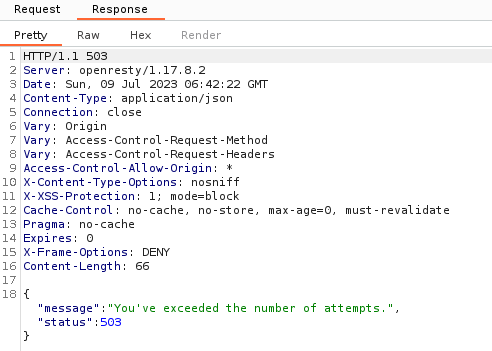

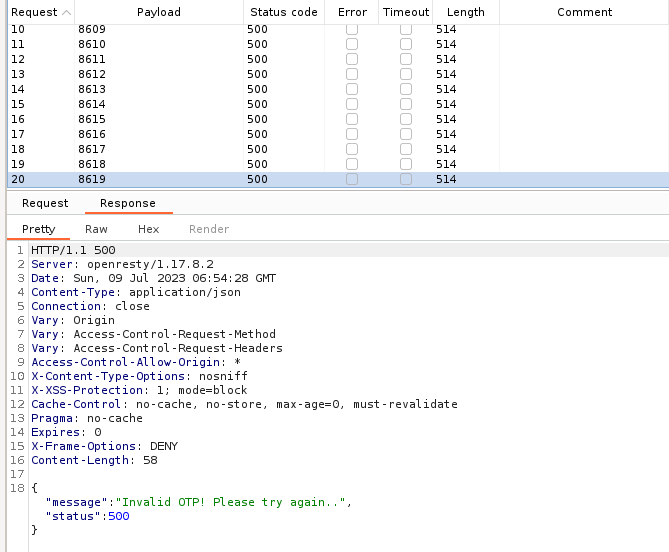

However, there seem to be some protection mechanism.
After number of attempts exceeded, when we used the correct OTP below.

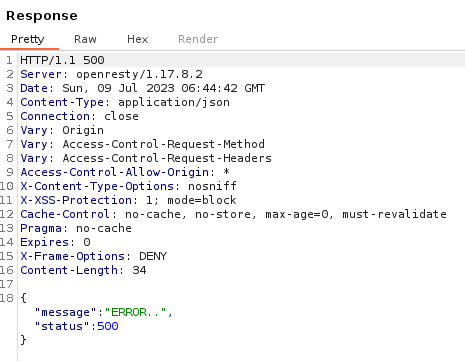

We get an ERROR response. The OTP has been invalidated.
But we do notice something peculiar.
Most of the endpoints we have are /v2/ however this is /v3/. Could there have been a /identity/api/auth/v1/check-otp or a /identity/api/auth/v2/check-otp endpoint?

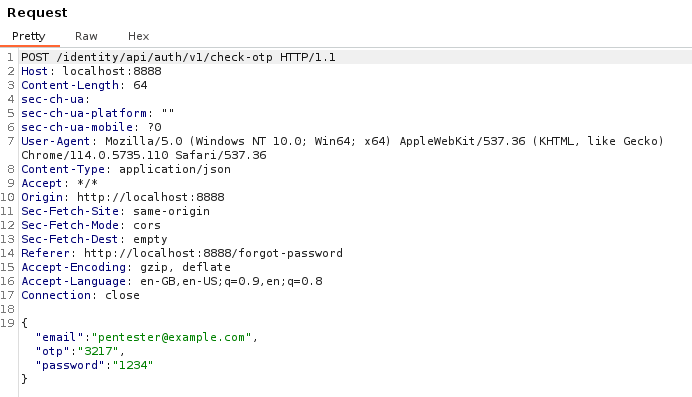

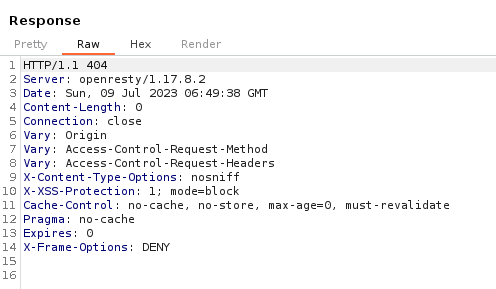

Going by this, we sent request to the respective paths. We found out that /identity/api/auth/v1/check-otp is non-existent

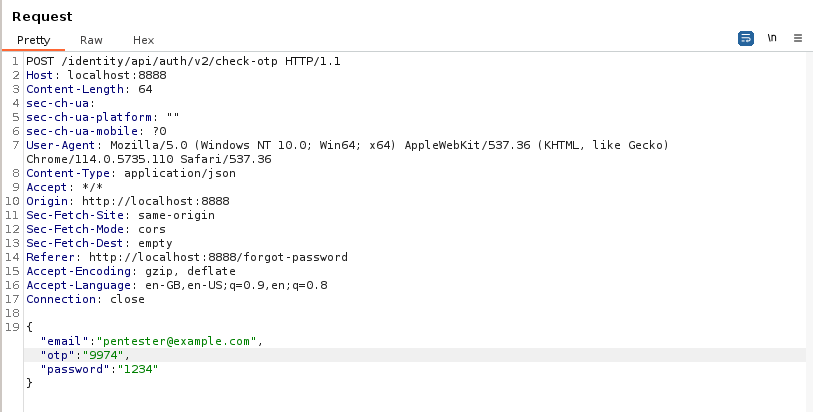

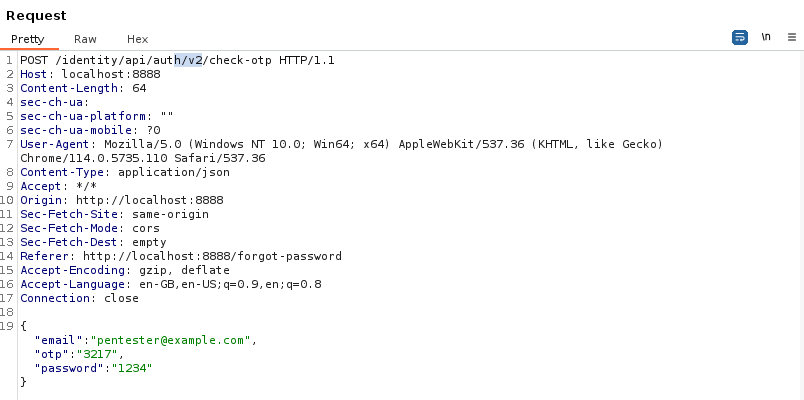

However, /identity/api/auth/v2/check-otp is a valid and working endpoint!
And even after sending 20 payloads, we are not locked out! Seems like we can brute-force using this endpoint!
As can be seen below, we have successfully changed the password of the user!
Challenge 14 - Find an endpoint that does not perform authentication checks for a user.¶
Through #Challenge 2 - Access mechanic reports of other users, we know that /api/mechanic/mechanic_report?report_id={id} endpoints does not require authentication.
Excessive Data Exposure¶
Challenge 4 - Find an API endpoint that leaks sensitive information of other users¶

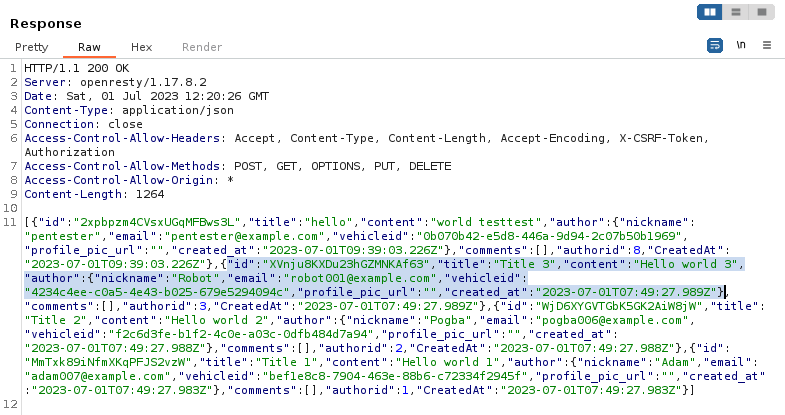

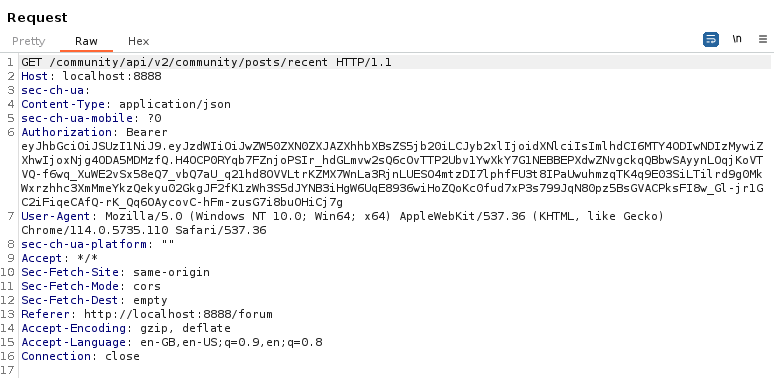

We notice that API /community/api/v2/community/posts/recent called when we browse to http://localhost:8888/forum reveals more than just title and content of the post but also vehicleid
Rate-limiting¶
Challenge 6 - Perform a layer 7 DoS using ‘contact mechanic’ feature¶

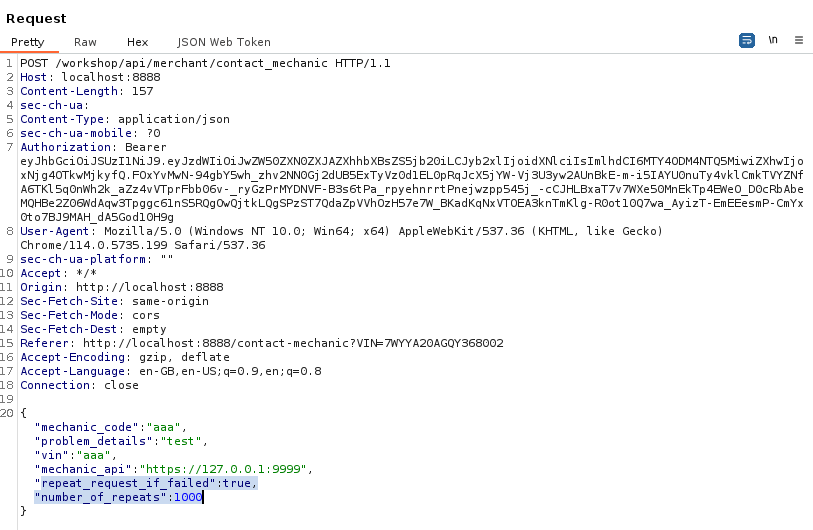

Owing to our #Challenge 11 - Make crAPI send an HTTP call to "www[.]google[.]com" and return the HTTP response. discovery we attempt to perform a layer 7 DoS by simply changing the url of mechanic_api to an invalid one, set repeat_request_if_failed to true and number_of_repeats to a large enough number.

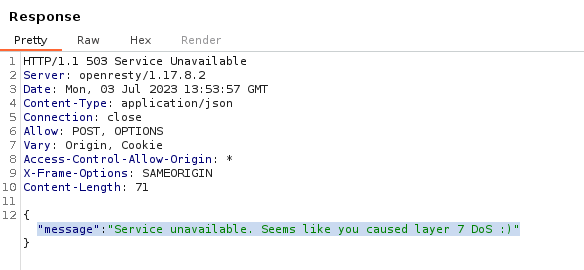

From the response, it seems like we have caused a layer 7 DoS.
Mass Assignment¶
Challenge 8 - Get an item for free¶
crAPI allows users to return items they have ordered. You simply click the "return order" button, receive a QR code and show it in a USPS store. To solve this challenge, you need to find a way to get refunded for an item that you haven’t actually returned.
Leverage the predictable nature of REST APIs to find a shadow API endpoint that allows you to edit properties of a specific order.

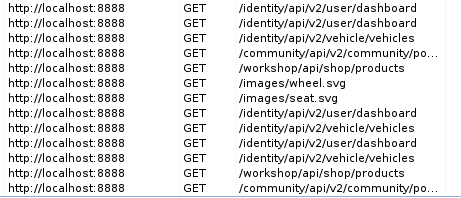

Analysing the business logic flow with burp, we realised that order returns are related to APIs with /orders in them.

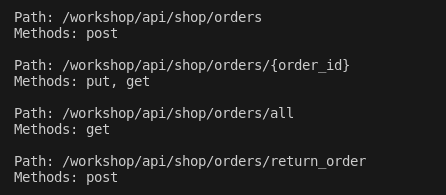

Again using the apimap, we extract the relevant endpoints from the API specs.

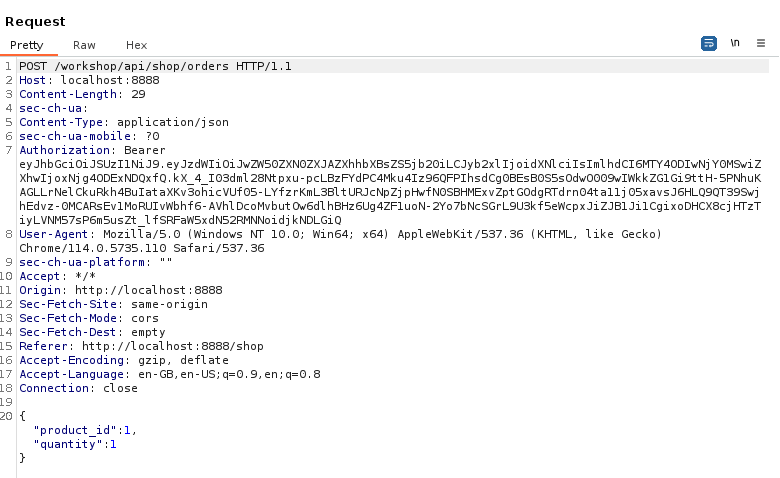

An interesting API is the /workshop/api/shop/orders/{order_id} where there is a GET and a PUT method. To get a valid order_id, we would first need to purchase an item and this would use the POST method on /workshop/api/shop/orders/ endpoint

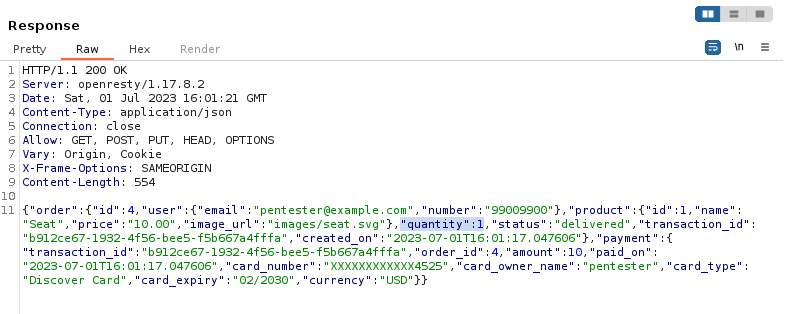

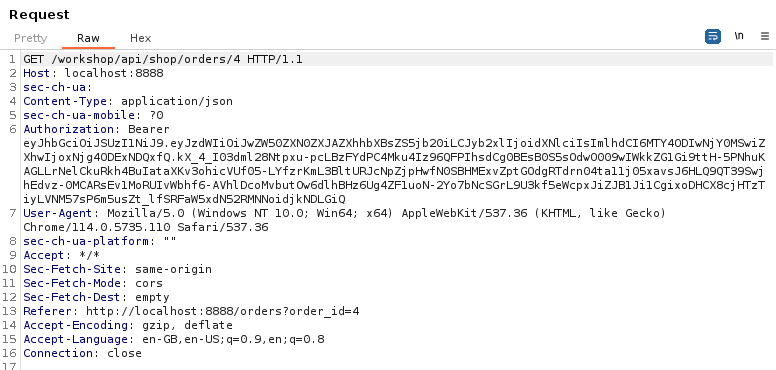

Shown below is a valid GET request, after we have purchased the item.
Notice we only bought 1 and the variable quantity is 1.

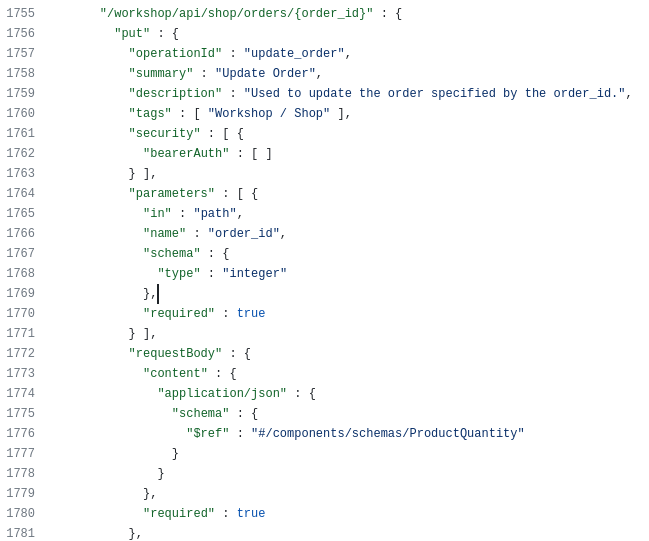

We analyse the API schema and it seems that we might be able to edit the ProductQuantity with the PUT request even after we have bought and paid for the item.

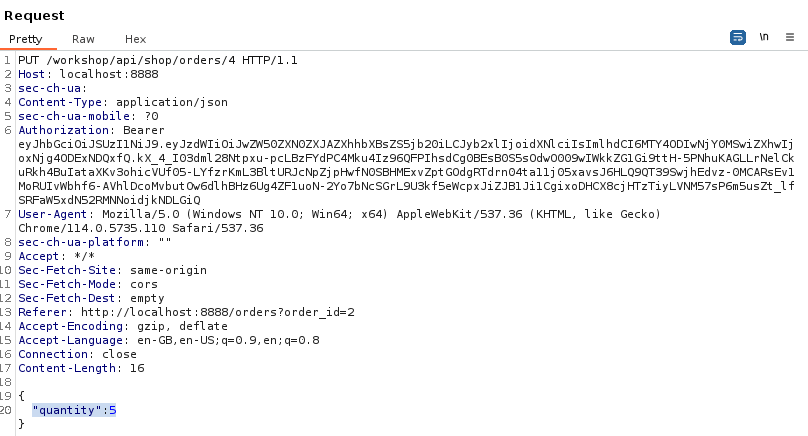

We test this out by sending the request as follows.

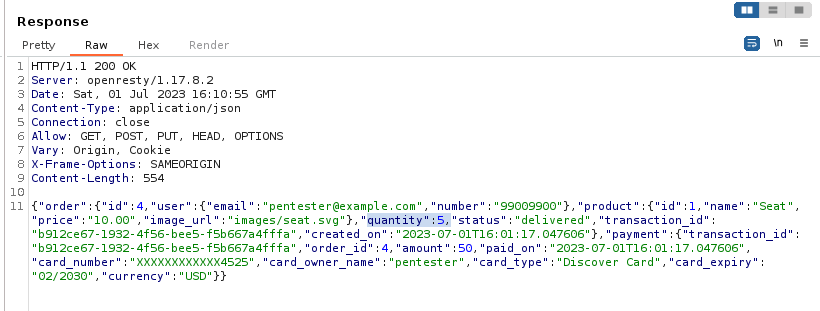

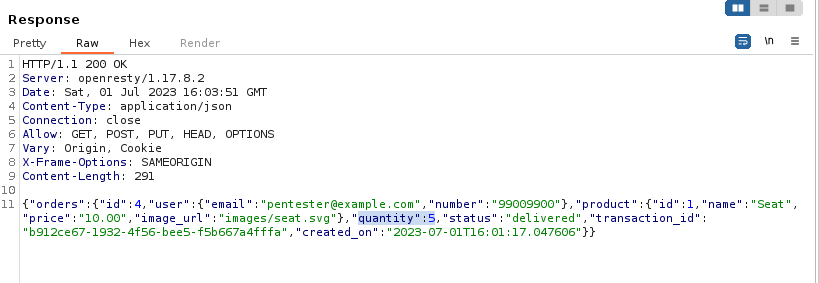

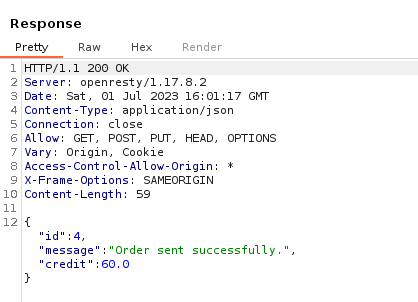

We get an 200 OK response with the quantity altered.
We send the corresponding GET request again to double confirm the change.

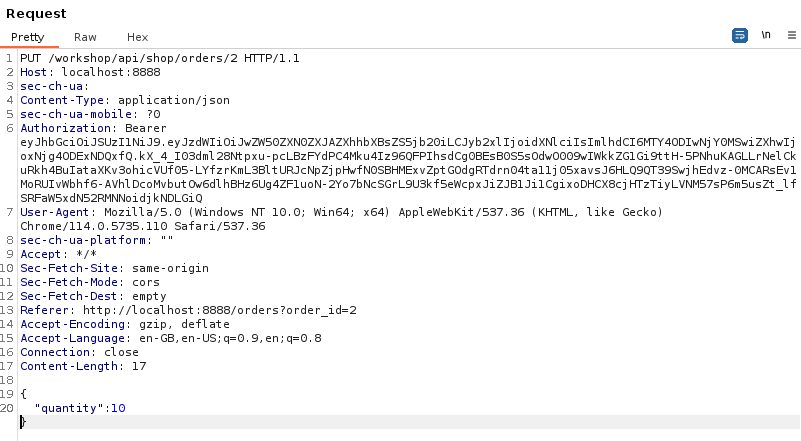

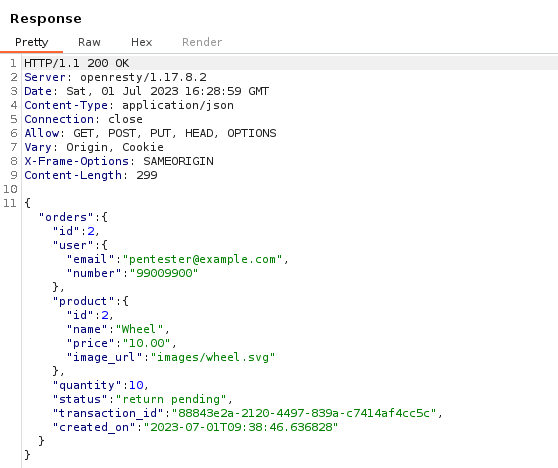

We are also able to do this to items that are return "pending status".

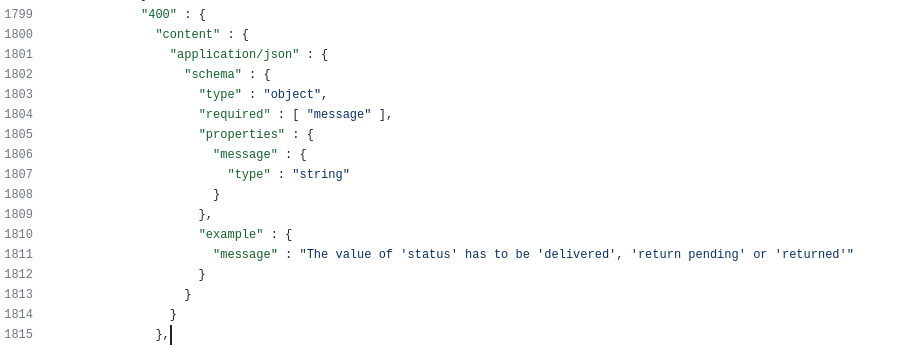

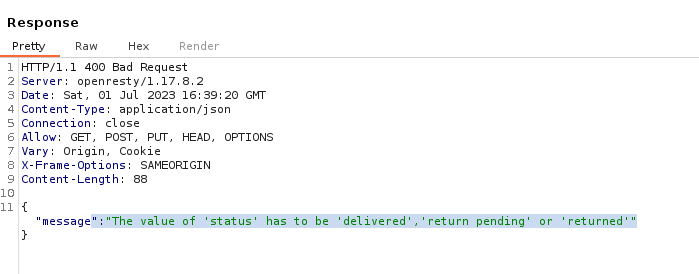

However, this did not increase our credit. Instead, within the API specs we found a peculiar error message.

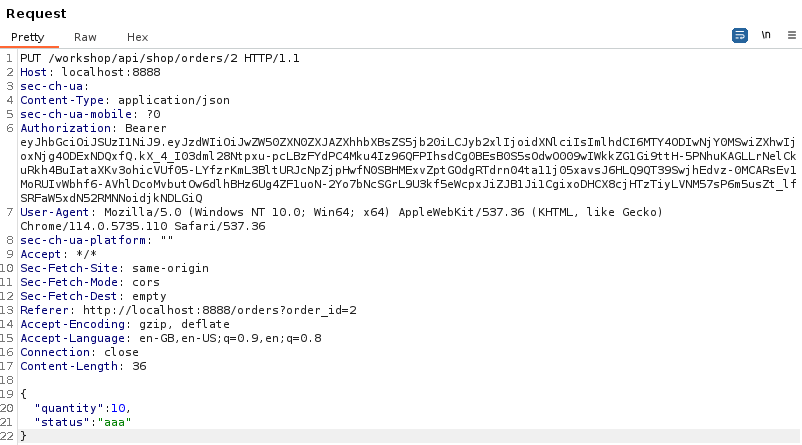

Based on the request/response below, even though it is not documented, it seems like we might just be able to manipulate "status"
True enough, we were able to change status from "pending return" back to "delivered".
That being the case, perhaps if we change it to "returned" we might get more credit back than expected?

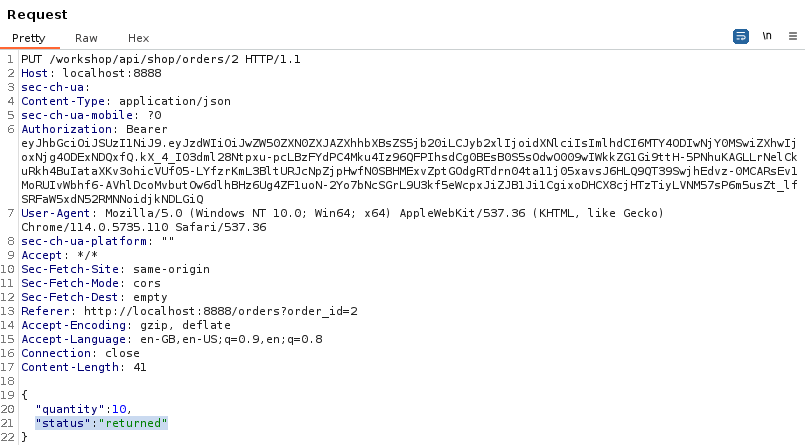

We tested this idea out and upon changing "status" to "returned"

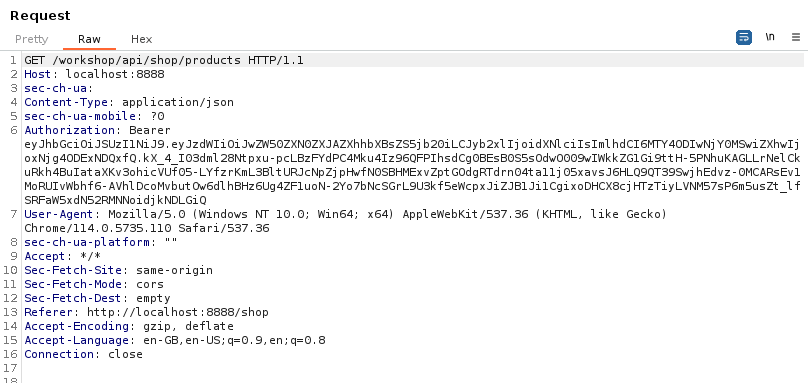

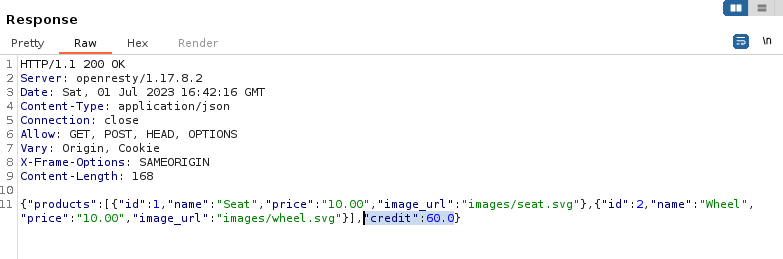

We were able to see an increase in our credit through the GET /workshop/api/shop/products.
From $60.0 to $160.0
Challenge 9 - Increase your balance by $1,000 or more¶
After solving the crAPI#Challenge 8 - Get an item for free challenge, be creative and find a way to get refunded for an item you never returned, but this time try to get a bigger refund.
To do this we will just need to increase the quantity of items to > 100 and then change the status from "delivered"/"pending return" to returned, just like how it was done in #Challenge 8 - Get an item for free.
Another way to do this would be to continuously alter the "status" variable from "delivered"/"pending return" to "returned" This will be demonstrated in apimap's sample template!
SSRF¶
Challenge 11 - Make crAPI send an HTTP call to "www[.]google[.]com" and return the HTTP response.¶

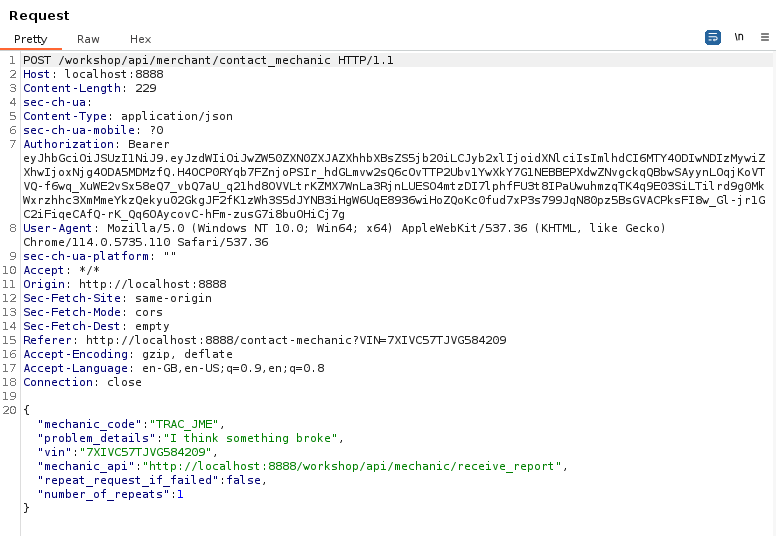

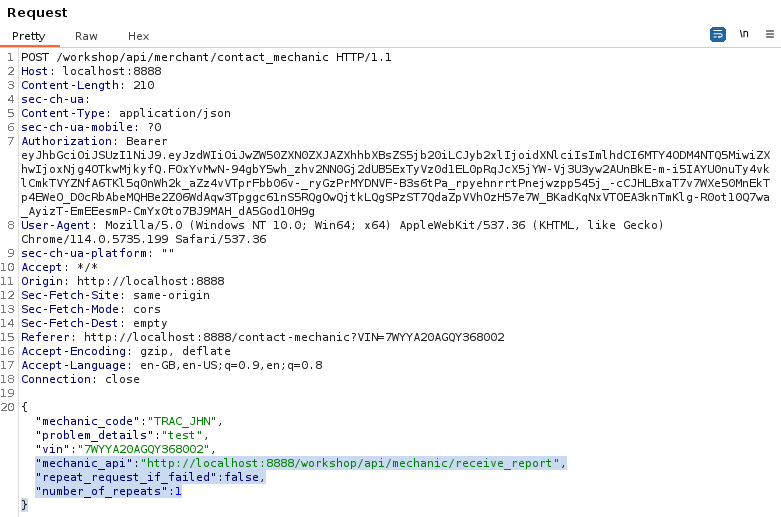

There is something peculiar about the endpoint /workshop/api/merchant/contact_mechanic .

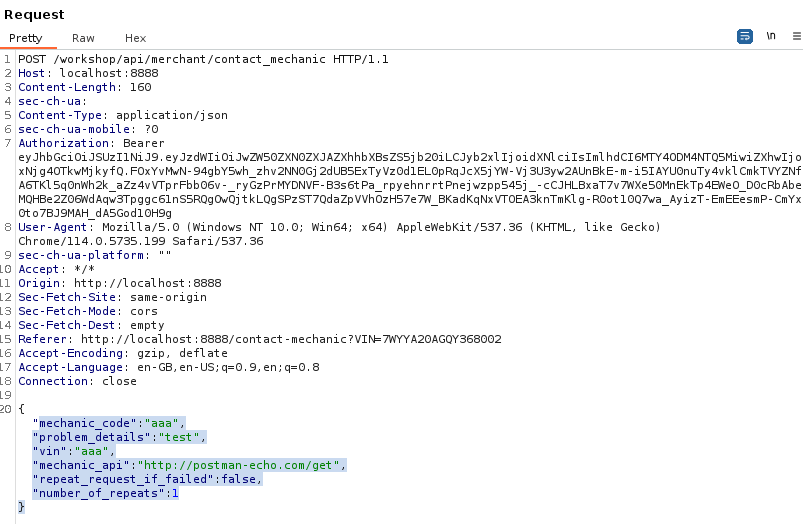

In the highlighted portion we noticed that the request JSON contains fields mechanic_api, repeat_request_if_failed and number_of_repeats. They seem to be configurations for sending request.
The data within the response response_from_mechanic_api is not helping too! Seems like this is an API that calls another API!
We attempted to repeat this request but changing the mechanic_api to postman-echo[.]com.

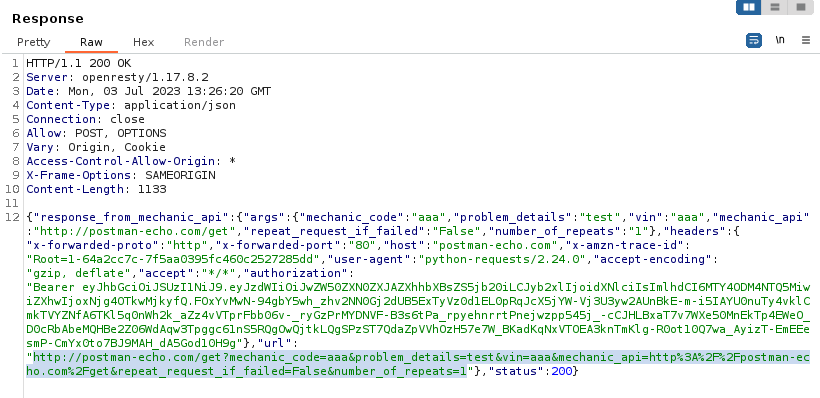

Request seem to be successful, and it seems like response_from_mechanic_api returns the response of the website(postman-echo)! Additionally, we seem to be able to use arbitrary information.
We tested the other request methods of postman-echo and it seems like only GET request is valid.

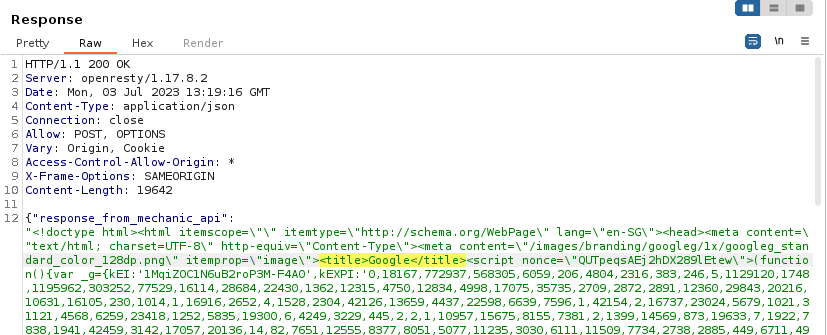

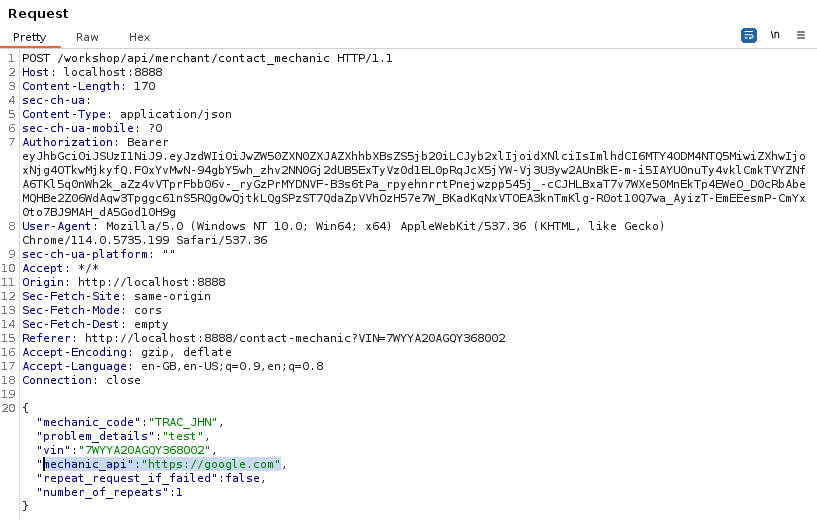

The API makes a GET request and returns the response from the GET request. Therefore when we change the mechanic_api to google.com, we will get back the response of google.com!
Injection¶
Challenge 12 - Find a way to get free coupons without knowing the coupon code. (NoSQL)¶

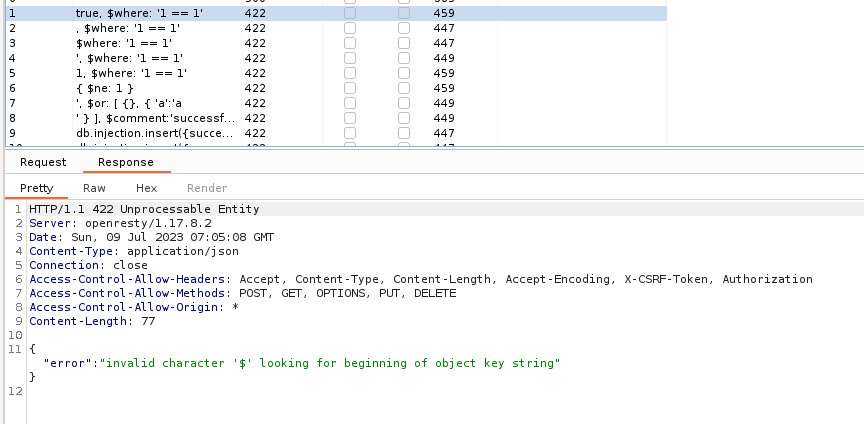

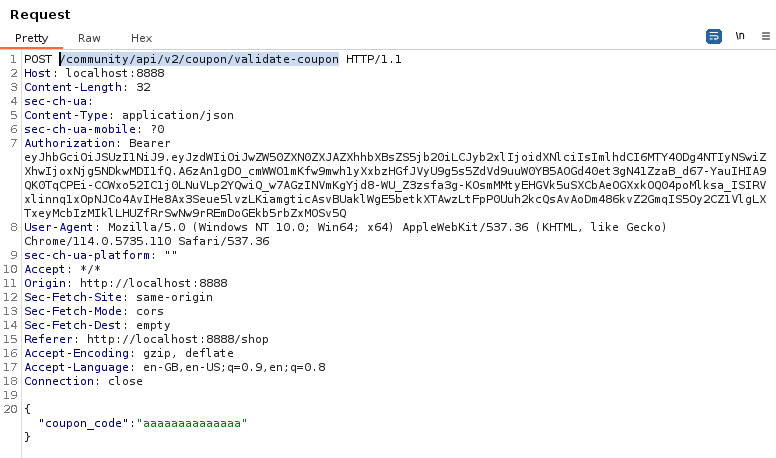

We looked at the coupon validation API and used a noSQL payloads to fuzz. We get mostly 422 Erros, where it is finding fault with our inputs, indicating further that the database used is likely noSQL as it is processing the JSON.

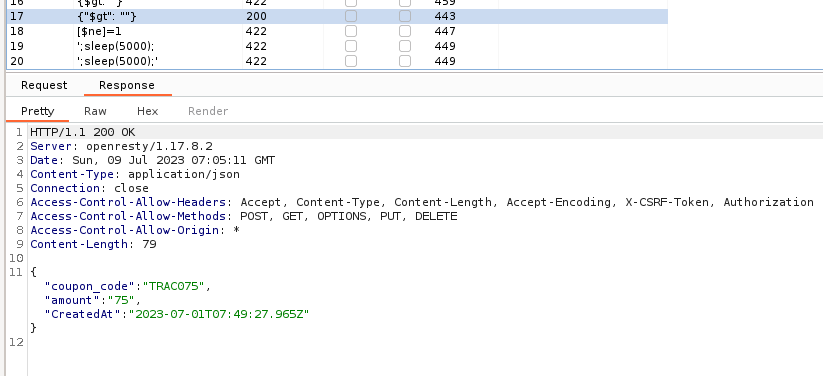

When {"$gt":""} payload was used, for some reason a 200 OK response was the coupon code was displayed!
Challenges Not Attempted¶
(Excessive Data Exposure) Challenge 5 - Find an API endpoint that leaks an internal property of a video¶
In this challenge, you need to find an internal property of the video resource that shouldn’t be exposed to the user. This property name and value can help you to exploit other vulnerabilities.
(BFLA) Challenge 7 - Delete a video of another user¶
(Mass Assignment) Challenge 10 - Update internal video properties¶
After solving the #Challenge 5 - Find an API endpoint that leaks an internal property of a video challenge, try to find an endpoint that would allow you to change the internal property of the video. Changing the value can help you to exploit another vulnerability.
