Burp Extension - GUI

The appeal of writing a Burp Extension is to visualise our actions during the pentest. Therefore, the next important thing to do will be do learn how to create a GUI and interact with it before dwelling into writing the functions. We will be continuing from the Burp Extension - Hello World.

Setting Up

Burp uses the Java Swing Library for the GUI hence, we will need to install this as a plugin to our Eclipse IDE.

Installing relevant dependencies

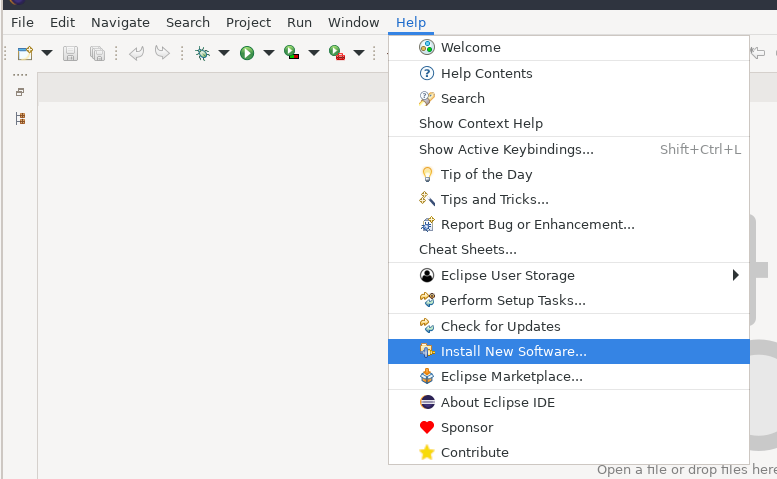

Step 1: Navigate to the "Help" tab and the "Install New Software" button

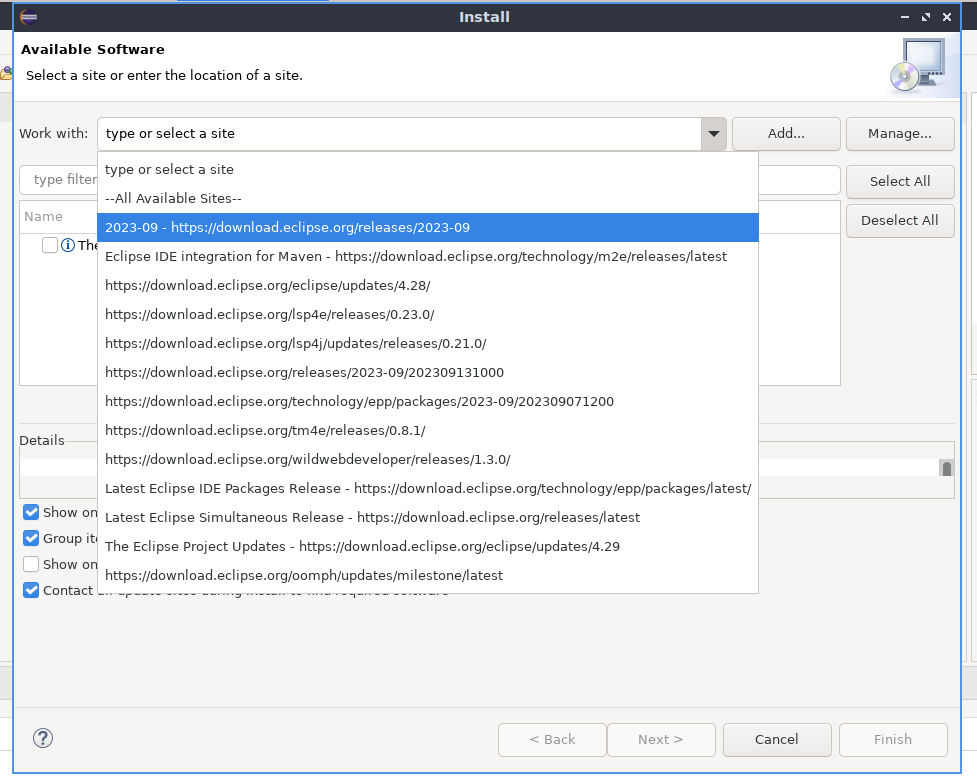

Step 2: Select the relevant site to download from. In our case we choose the first site available.

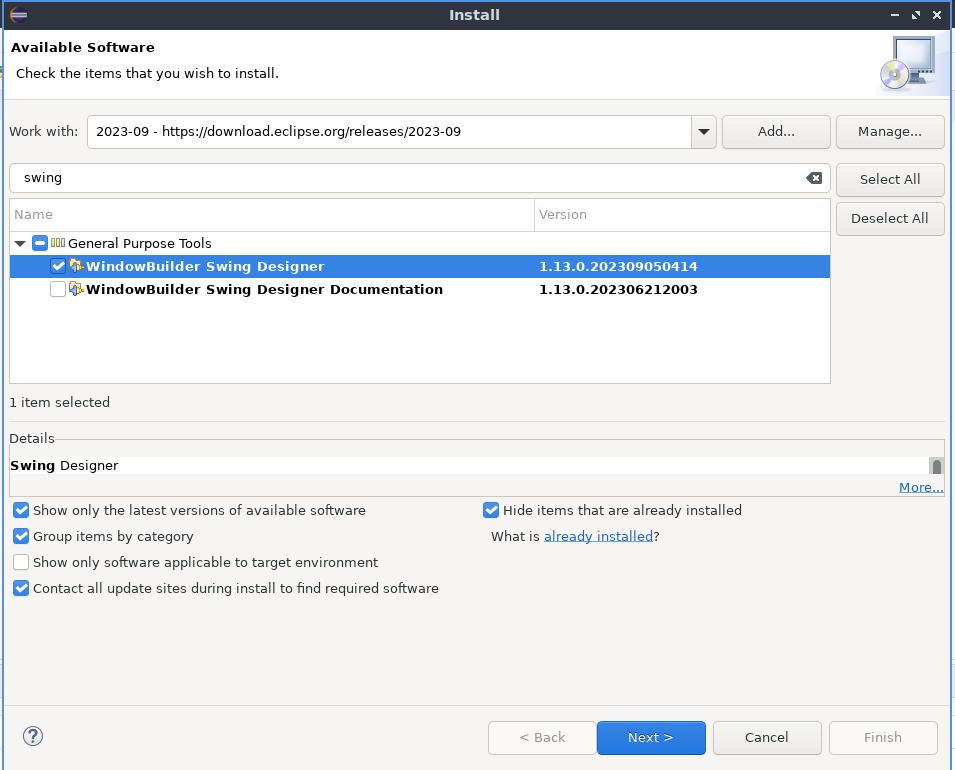

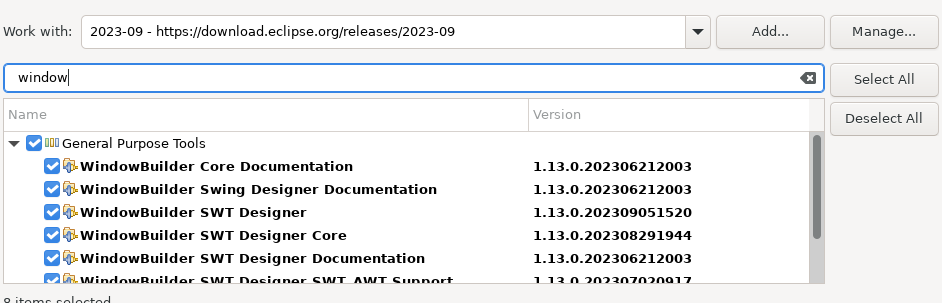

Step 3: We then filter for "Swing" and "Window" and select everything in that filter.

After installation and restart we will be ready for the next step.

Creating GUI

In GUI creation, we will explore a the GUI feature to register a tab.

Register a Tab

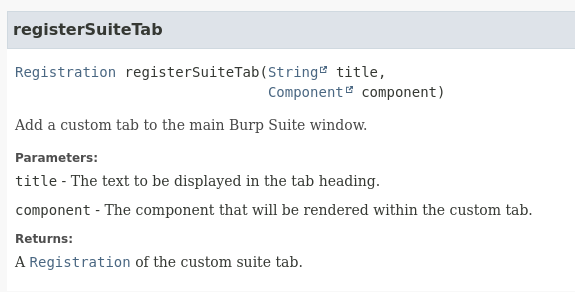

The following is the documentation for registerSuiteTab(), it seems like all we need to do is provide it with a string for the title and a Component object.

The following code is a simple example that will give us a "Hello World" Tab within it will have a JLabel() with "Hello World".

package TestExtension;

import javax.swing.JLabel;

import burp.api.montoya.BurpExtension;
import burp.api.montoya.MontoyaApi;

public class TestExtension implements BurpExtension{
    @Override
    public void initialize(MontoyaApi api)
    {
        // set extension name
        api.extension().setName("Hello world extension");

        //Register a Tab
        api.userInterface().registerSuiteTab("Hello World", new JLabel("Hello, World!"));

        // throw an exception that will appear in our error stream
        throw new RuntimeException("Hello exception.");
    }
}

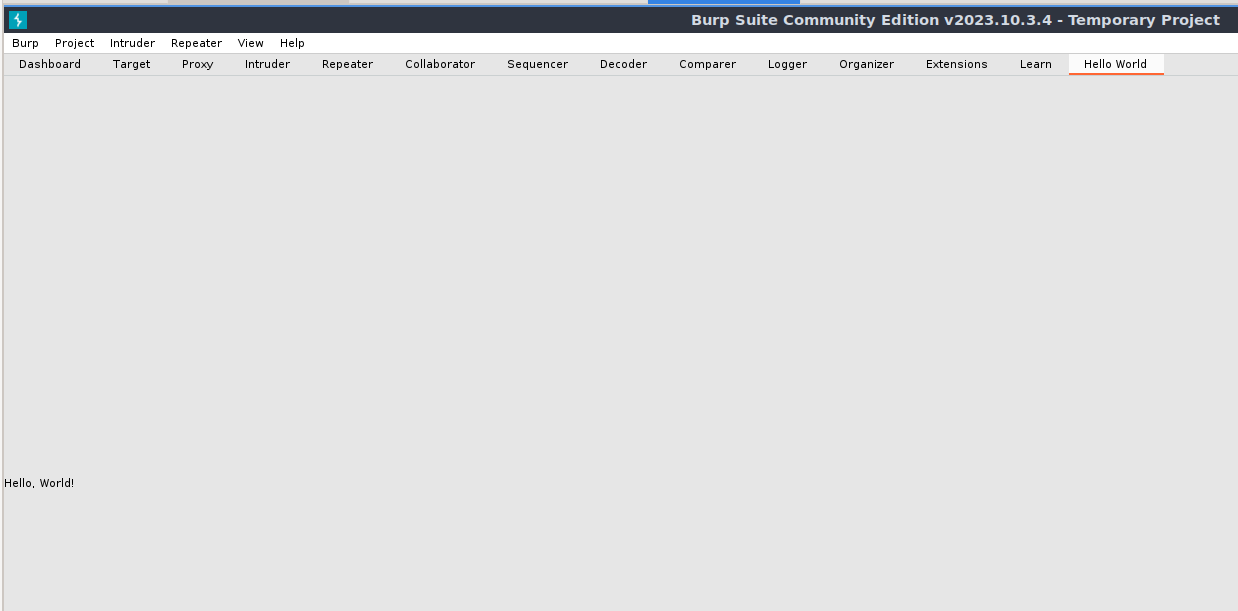

As can be seen below, we have registered a tab and the panel contains the Hello World Text.

Creating JPanel() Component

But of course, we would definitely want to do more than that and we can make use of JPanel() for this. To do so we will first need to create a new .java file. It is always wise to separate the GUI .java from any logic .java.

For the simplicity sake, we will explore just changing the appearance of the GUI and logging the changes in Extension Logs.

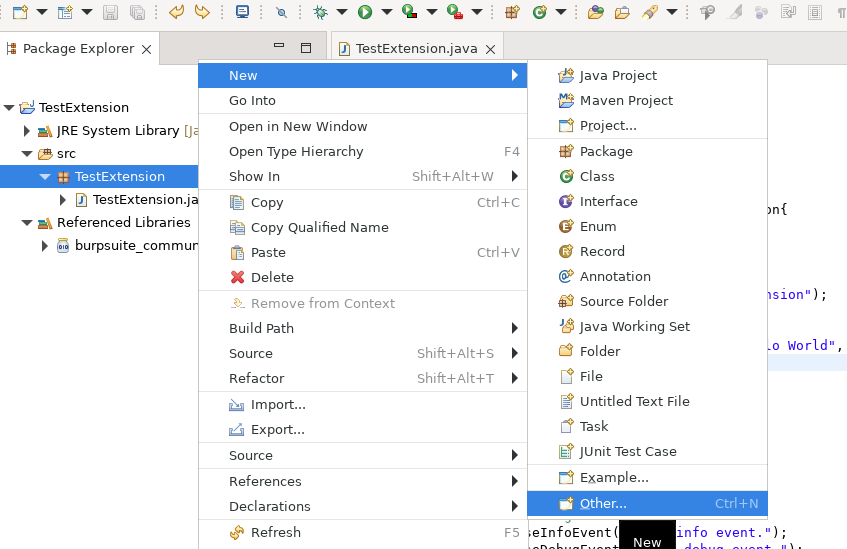

Step 1: We right-click on TestExtension -> New -> Other, or we can simply Ctrl + N.

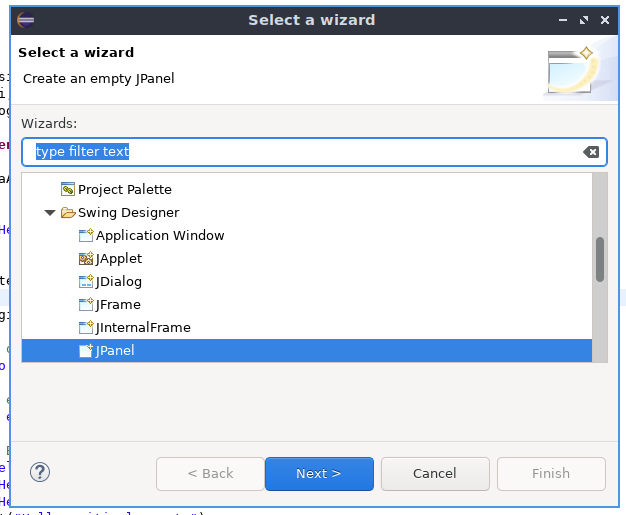

Step 2 : In the creation wizard, we select "JPanel"

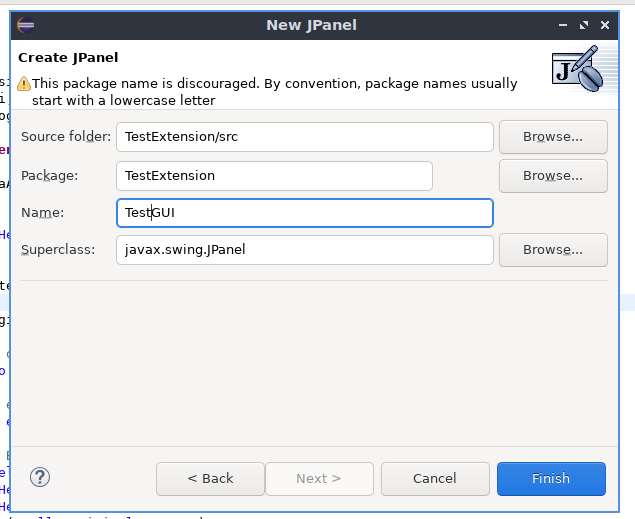

Step 3 : We can name the JPanel() object however we want and in this case we will use the name TestGUI

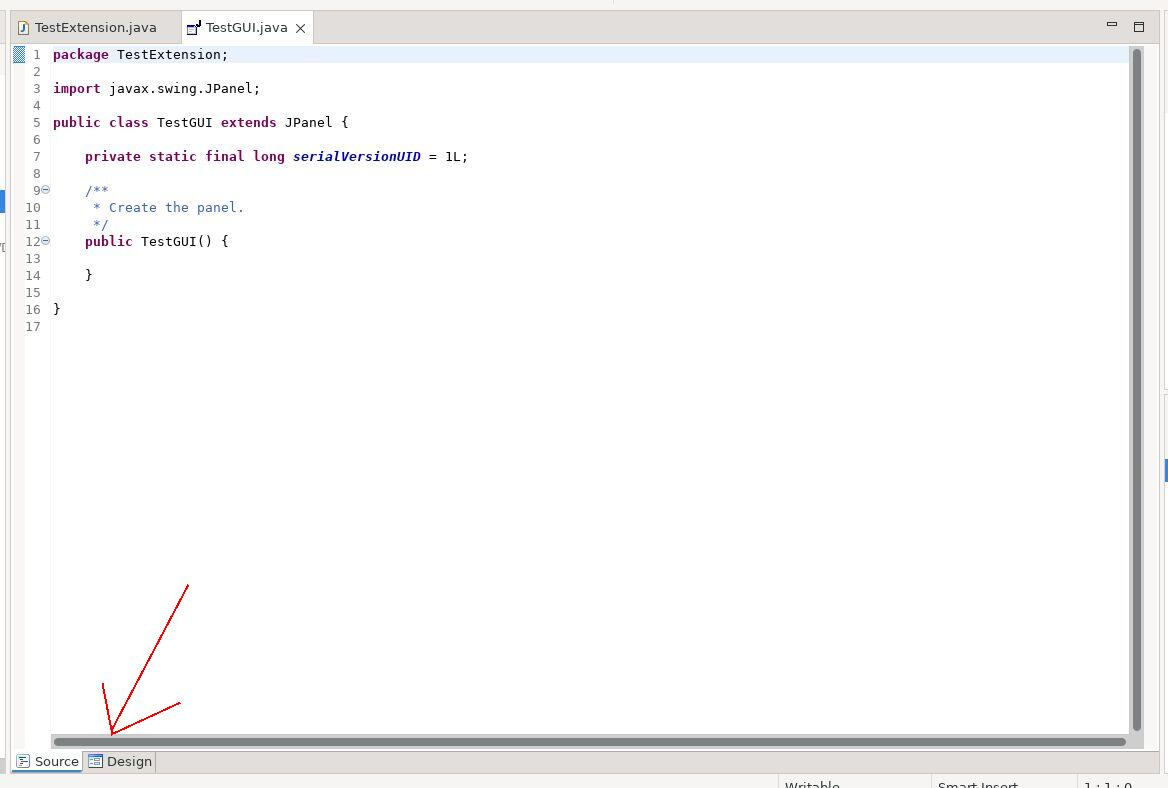

Step 4 : While it is entire possible to design the GUI with code, but to keep myself sane, I decided to use the "Design" feature of eclipse which can be found at the bottom left corner.

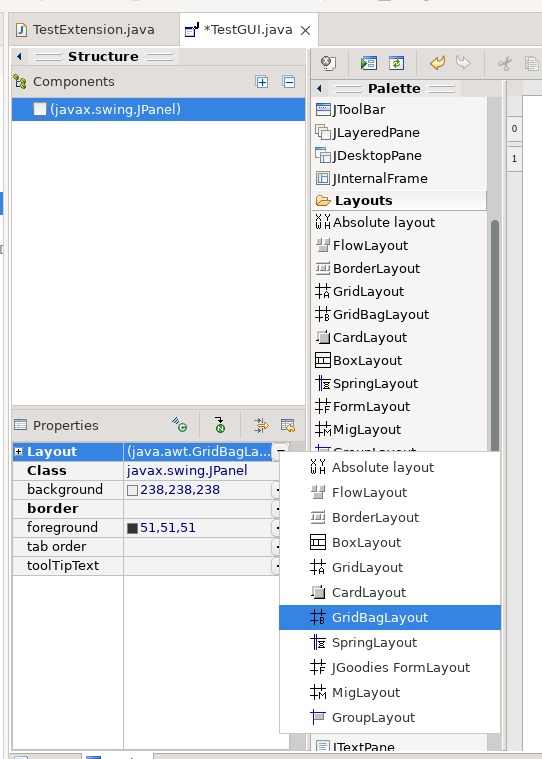

Step 5 : For this demonstration we used GridBagLayout, seen below by navigating to "Properties" panel and clicking onto the "Layout" tab.

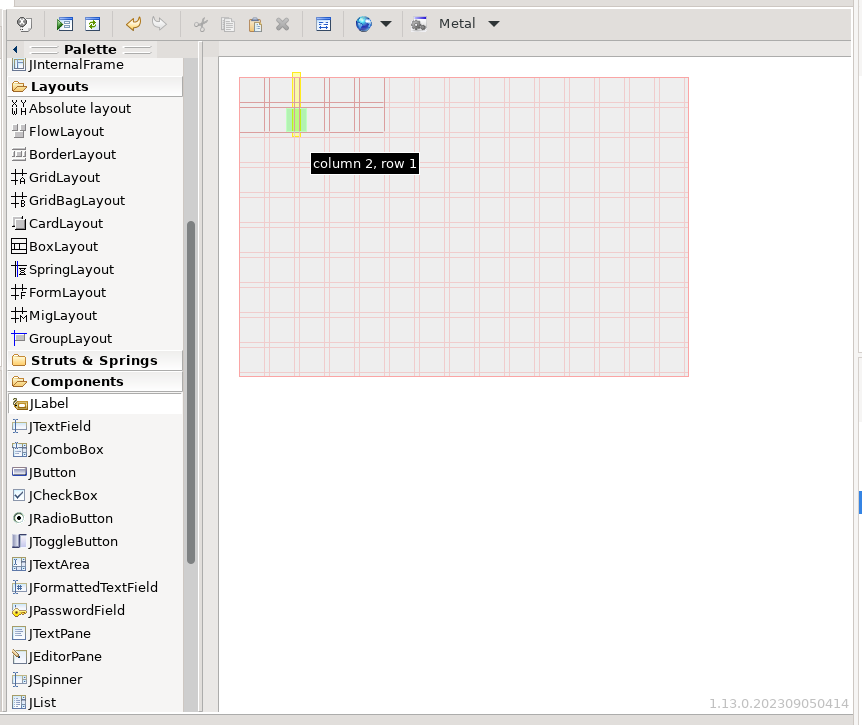

Step 6 : As can be seen below, we can choose the Components to add from the Palette section and GridBagLayout allows us to place the Components in a grid.

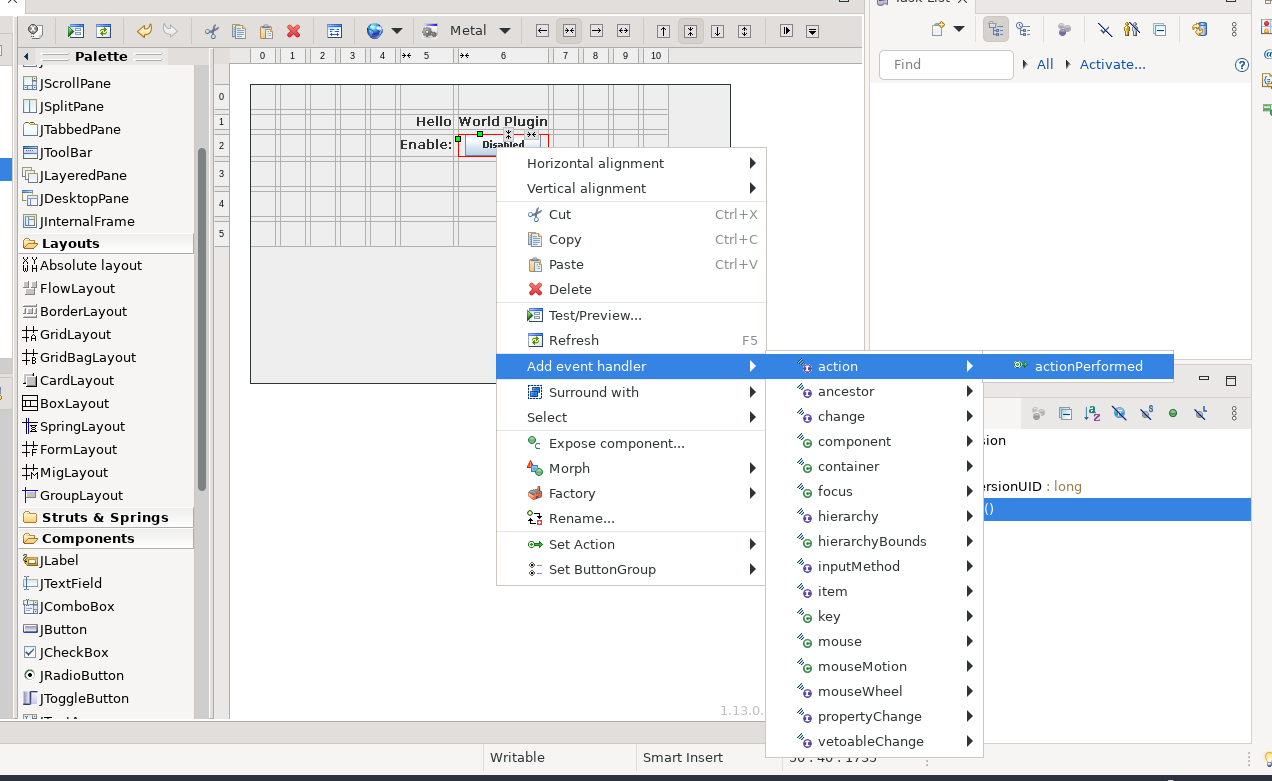

Step 7 : After adding all the relevant labels and button, we can choose what happens when the button is clicked by right clicking on the button then "Add event handler" -> "action" -> "actionPerformed".

Step 8 : We add the following action to change the text displayed when selected and logging it through the Montoya API.

//[...Truncated swing related imports...]
import burp.api.montoya.MontoyaApi;
import burp.api.montoya.logging.Logging;

//[...Truncated other GUI related code...]

public TestGUI(MontoyaApi api){}
tglbtnDisabled.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent arg0) {
                if(tglbtnDisabled.isSelected()) {
                    tglbtnDisabled.setText("Enabled");
                    logging.logToOutput("Extension Enabled");
                }
                else {
                    logging.logToOutput("Extension Disabled");
                }
            }
        });
//[...Truncated other GUI related code...]
}

Step 9 : We will need to update the following line in our TestExtension.java and we are ready to export the extension.

api.userInterface().registerSuiteTab(HELLOW, new TestGUI(api));

Loading the Extension

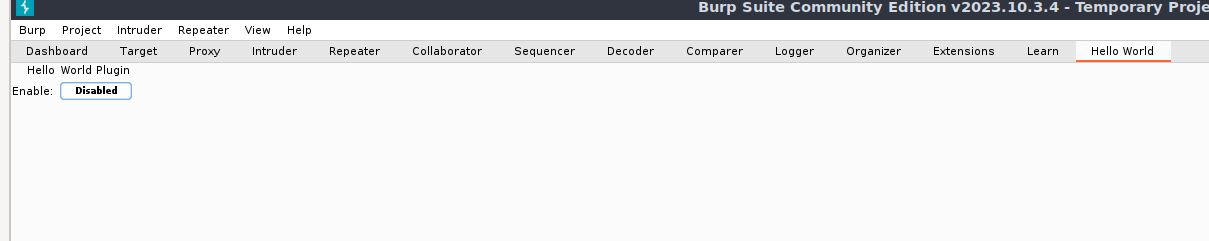

There we have it! Our first Burp Extension that has a tab a JPanel

Has buttons that can be toggled On and Off

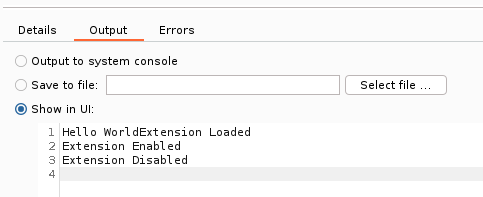

The On/Off actions are logged in output log.
