Chapter 1

Lab 1-1

This lab uses the files Lab01-01.exe and Lab01-01.dll. Use the tools and techniques described in the chapter to gain information about the files and answer the questions below.

Questions

Question 1.

Upload the files to http://www.VirusTotal.com/ and view the reports. Does either file match any existing antivirus signatures?

  • Yes there are detections by various AV vendors.
Question 2.

When were these files compiled?

  • Based on PEStudio, Lab01-01.exe was compiled on 19 Dec 2010 16:16:19 and Lab01-01.dll was compiled on 19 Dec 2010 16:16:38
Question 3.

Are there any indications that either of these files is packed or obfuscated? If so, what are these indicators?

  • Based on PEiD, the low Entropy as well as the imports being very obvious there are no signs of packing
  • Malware does not seem to be obfuscated as there is a lot of plain text around and entropy is low.
Question 4.

Do any imports hint at what this malware does? If so, which imports are they?

  • Lab01-01.exe
Imports Function
MapViewOfFile,CreateFileMappingA Loads File into ram and can be used to execute a file without using Windows Loader
  • Lab01-01.dll
Imports Function
ws2_32.dll : socket, send, recv, inetaddr Using sockets to send and receive data
CreateProcessA Creates a new process
Question 5.

Are there any other files or host-based indicators that you could look for on infected systems?

  • Based on the strings of Lab01-01.exe we can see that there is a particular file path C:\windows\system32\kerne132.dll. 1 is used instead of l which might be indicative of a malicious .dll in that path. We could be able to find this kerne132.dll on the infected host.
Question 6.

What network-based indicators could be used to find this malware on infected machines?

  • Based on the strings of Lab01-01.dll, we see what seems to be an IP address 127.26.152.13. We could filter for this IP address when we look through the network logs.
Question 7.

What would you guess is the purpose of these files?

  • It is likely that Lab01-01.exe is likely the loader and Lab01-01.dll likely contains the file malicious payload.
  • One possibility is also that Lab01-01.exe is executed and it will change the name of Lab01-01.dll to kernel132.dll
  • It might be a reverse shell/beacon as there are network connectivity imports in the .dll as well as a hardcoded IP address.

Screenshots

  • Lab01-01.exe
Tool Evidence

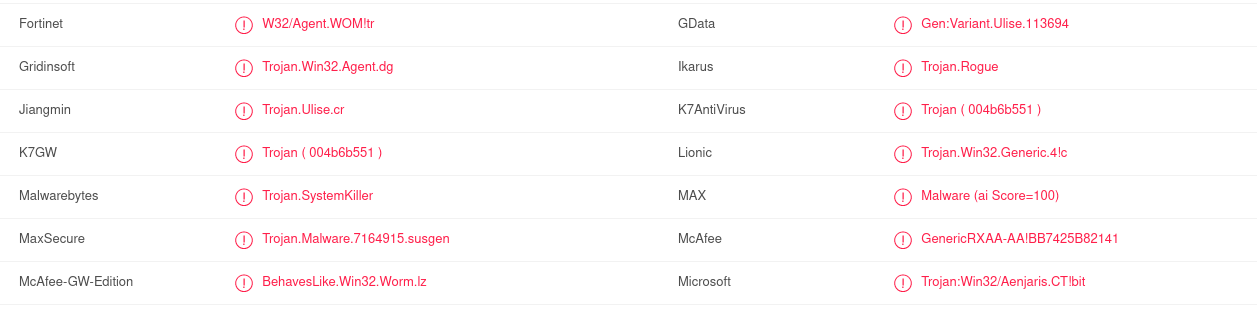

VirusTotal Pasted image 20220618215206.png

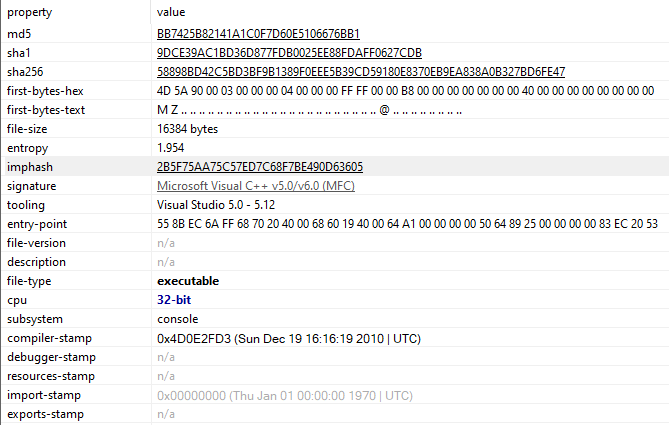

Classification Pasted image 20220618201833.png

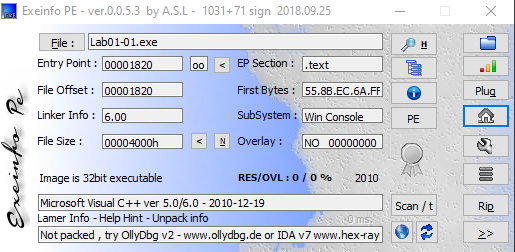

Identify Packing/Obfuscation Pasted image 20220618212408.png

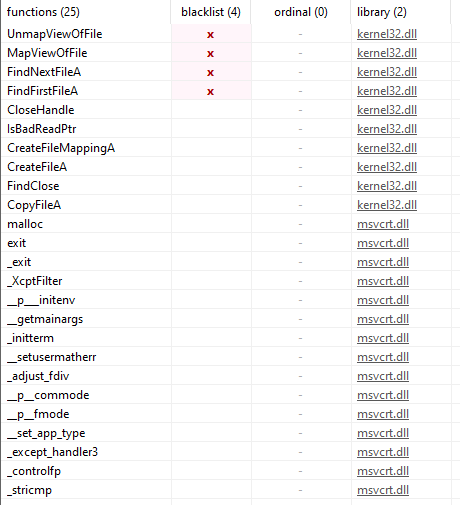

Imports Pasted image 20220618220228.png

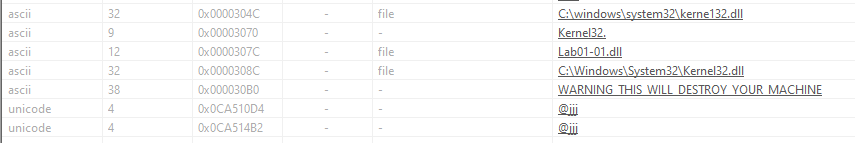

Strings Pasted image 20220618224723.png
  • Lab01-01.dll
Tool Evidence

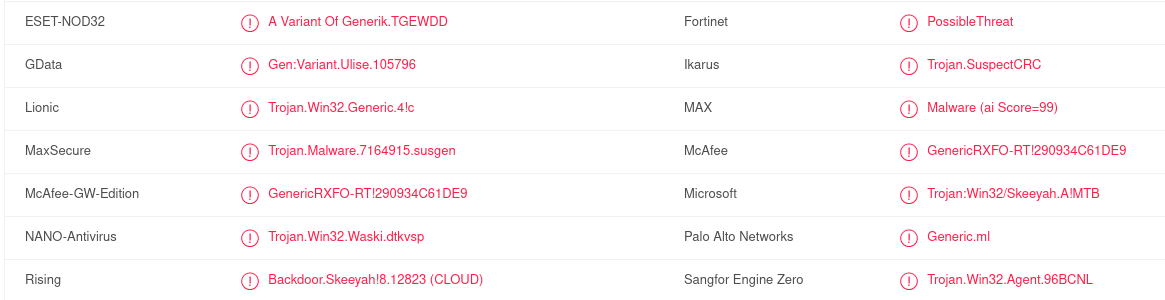

VirusTotal Pasted image 20220618215301.png

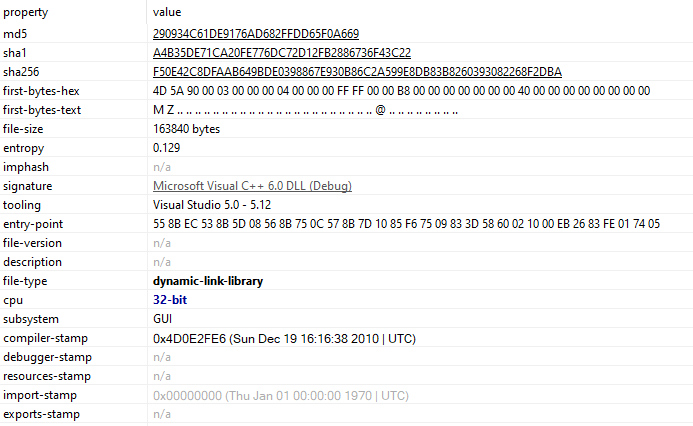

Classification Pasted image 20220618202103.png

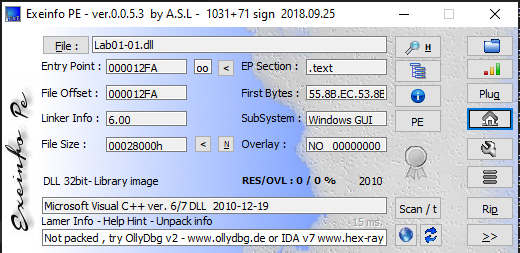

Identify Packer/Obfuscation Pasted image 20220618212518.png

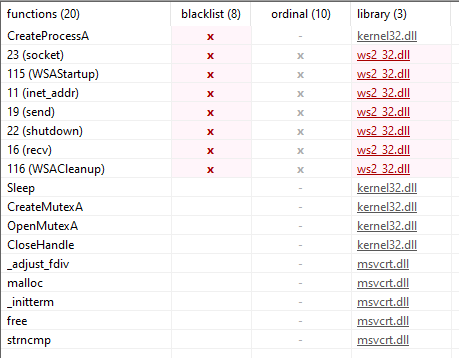

Imports Pasted image 20220618220117.png
Strings Pasted image 20220618224805.png

Lab 1-2

Analyze the file Lab01-02.exe.

Questions

Question 1.

Upload the Lab01-02.exe file to http://www.VirusTotal.com/. Does it match any existing antivirus definitions?

  • Yes, there are detection by various AVs.
Question 2.

Are there any indications that this file is packed or obfuscated? If so, what are these indicators? If the file is packed, unpack it if possible.

  • Packing is observed, due to the unusually small amount of imports and strings that does not make sense.
  • It is packed by UPX. This can be seen using PEiD and the section headers when using CFF explorer or PEStudio.
  • File can be unpacked using CFF explorer built-in UPX unpacker.
Question 3.

Do any imports hint at this program’s functionality? If so, which imports are they and what do they tell you?

Import(s) Function
CreateServiceA,
OpenSCManagerA		 Maintain Persistency by creating a service
InternetOpenUrlA,
InternetOpenA		 Surfs a webpage
Question 4.

What host- or network-based indicators could be used to identify this malware on infected machines?

  • Based on the string we see a URL www.malwareanalysisbook.com and we can filter for this URL in network logs if it exists.
  • As this malware could possibly create a service, Malservice could be a possible host based indicator. We can check Windows Event Logs with EventViewer, under Windows Logs> System and look for events with the Source set to Service Control Manager (SCM).
  • We can also look at Applications and Services Logs and look for malservice to see what it did.

Screenshots

  • Packed Malware
Purpose Evidence

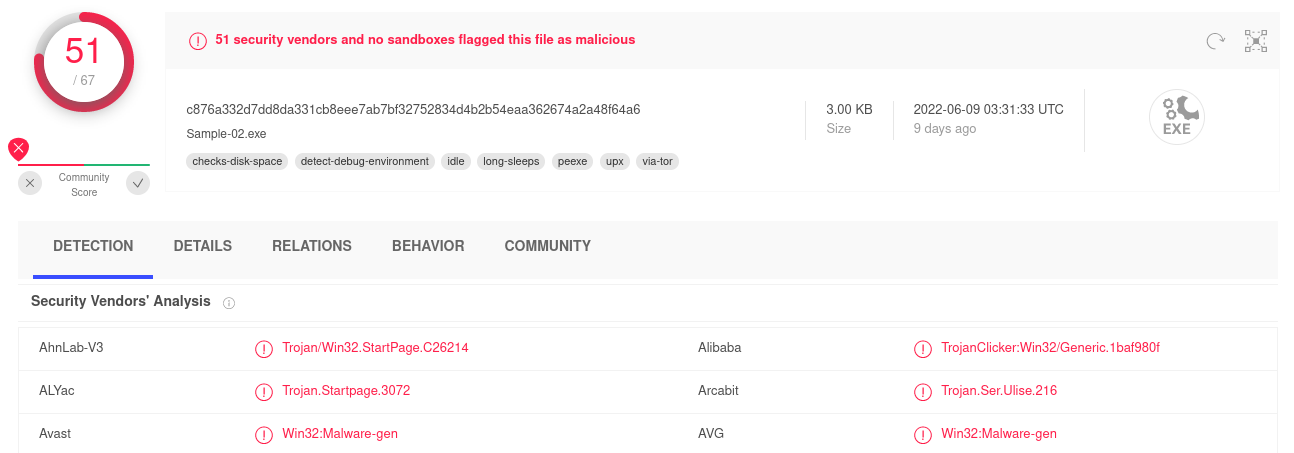

VirusTotal Pasted image 20220618231202.png

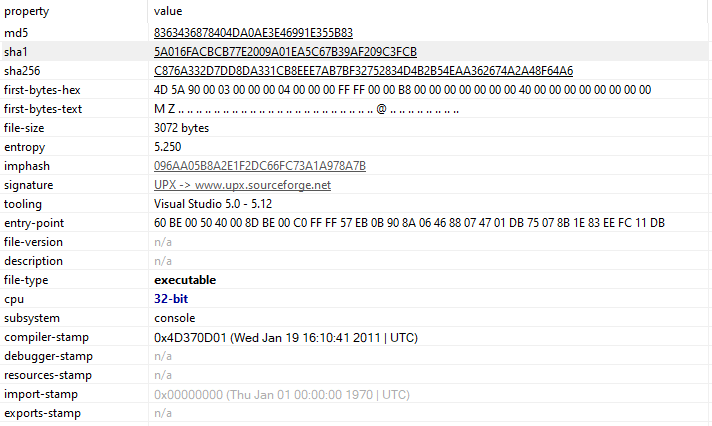

Classification Pasted image 20220618232140.png

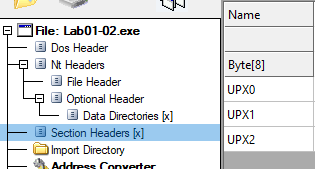

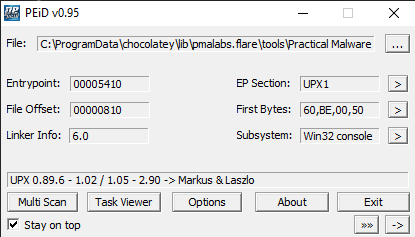

Identify Packing/Obfuscation Pasted image 20220618232213.png Pasted image 20220618232246.png

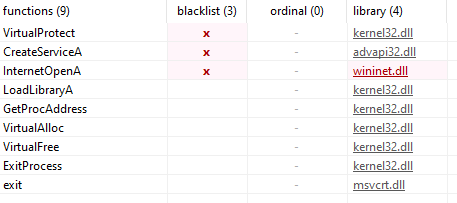

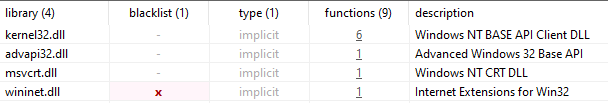

Imports Pasted image 20220618232409.pngPasted image 20220618232428.png

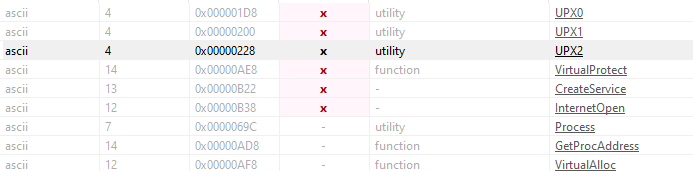

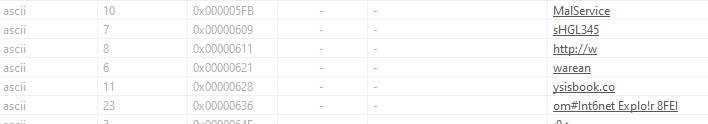

Strings Pasted image 20220618232554.pngPasted image 20220618232622.png
  • Unpacked Malware
Purpose Evidence

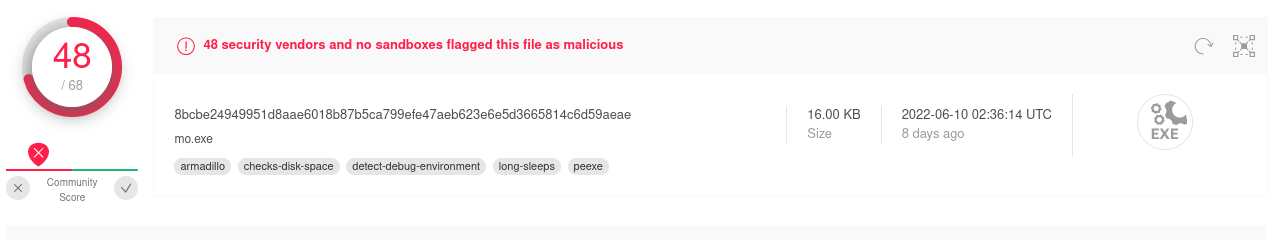

VirusTotal Pasted image 20220618233706.png

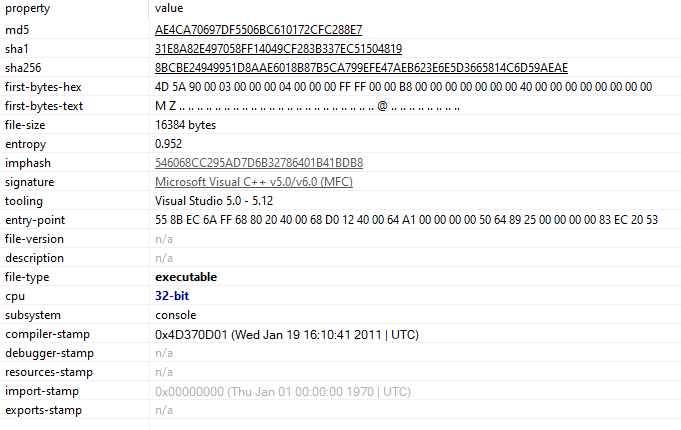

Classfication Pasted image 20220618233718.png

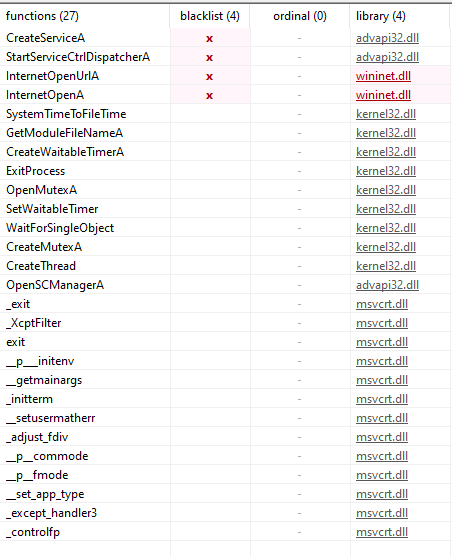

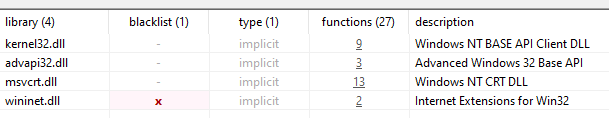

Imports Pasted image 20220618233727.pngPasted image 20220618233733.png

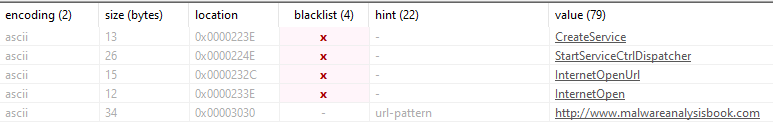

Strings Pasted image 20220618233926.pngPasted image 20220618233931.png

Lab 1-3

Analyze the file Lab01-03.exe.

Questions

Question 1.

Upload the Lab01-03.exe file to http://www.VirusTotal.com/. Does it match any existing antivirus definitions?

  • Yes there are detections by various AVs.
Question 2.

Are there any indications that this file is packed or obfuscated? If so, what are these indicators? If the file is packed, unpack it if possible.

  • Yes although entropy level is low but imports only has 2 functions, the section headers are empty and the lack of strings indicate the possibility packing.
  • PEiD, DiE and PEStudio all shows packing with signature FSG 1.0 .
  • #Unpacking Process is shown below.
Question 3.

Do any imports hint at this program’s functionality? If so, which imports are they and what do they tell you?

  • Lab01-03.exe
Import(s) Function
LoadLibraryA GetProcAddress Used by packer
  • Lab01-03_extracted.exe
Import(s) Function
Question 4.

What host- or network-based indicators could be used to identify this malware on infected machines?

  • Indicators of Compromise
Type Indicator
Network http://malwareanalysisbook.com/ad.html

Screenshots

  • Packed
Purpose Evidence

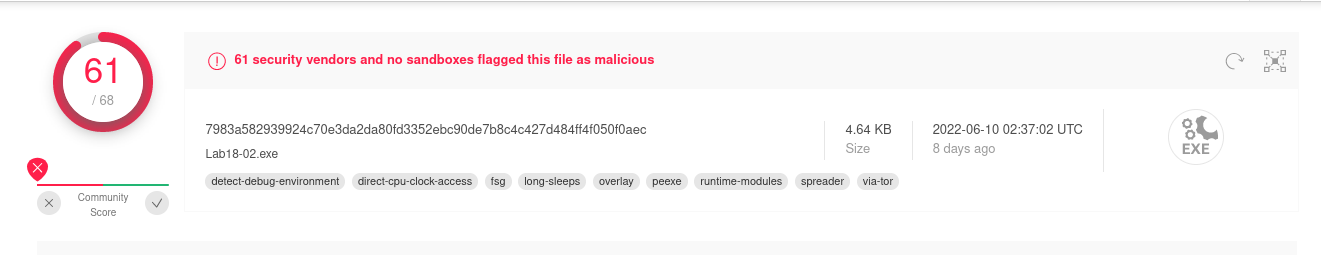

VirusTotal Pasted image 20220619003547.png

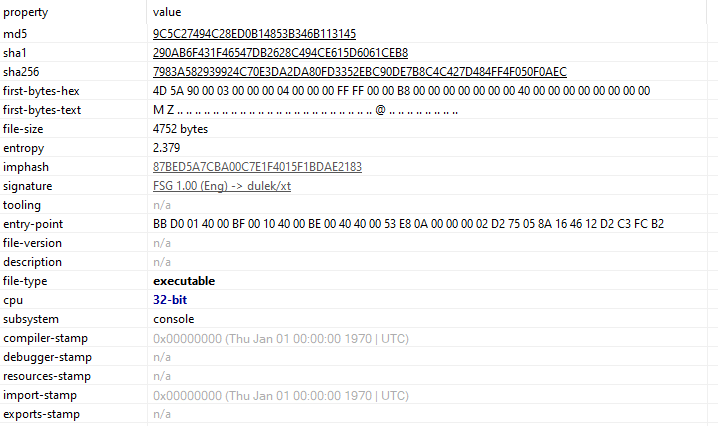

Classfication Pasted image 20220619003554.png

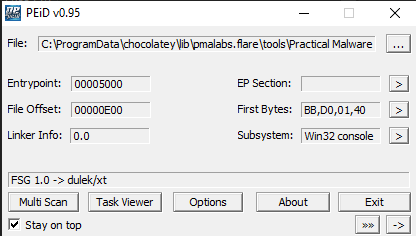

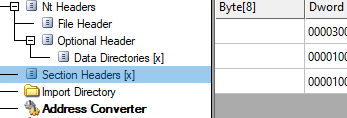

Identify Packer/Obfuscation Pasted image 20220619003615.pngPasted image 20220619003635.pngPasted image 20220619003656.png
Imports Pasted image 20220619003806.pngPasted image 20220619003812.png

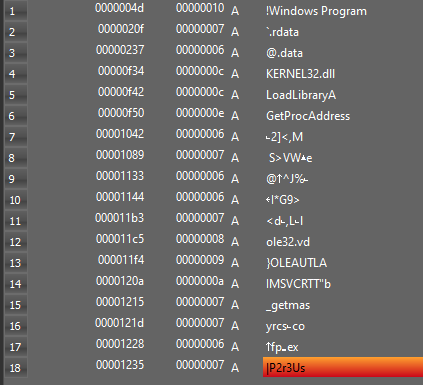

Strings Pasted image 20220619003821.png
  • Unpacked
Purpose Evidence

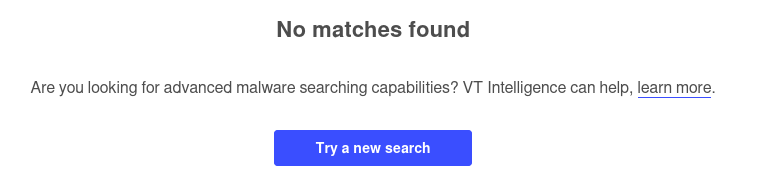

VirusTotal Pasted image 20220619235038.png

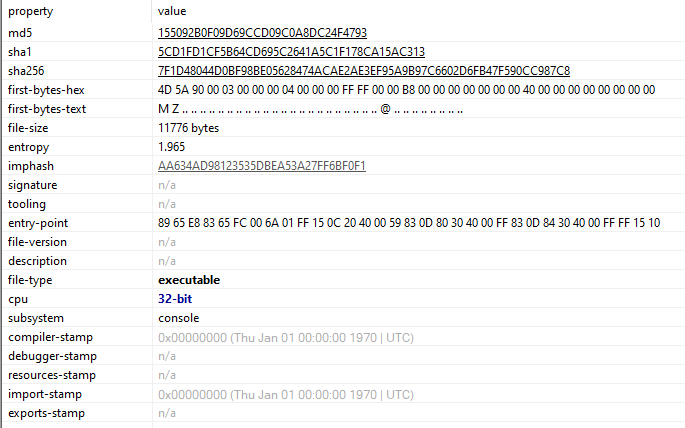

Classfication Pasted image 20220620000216.png

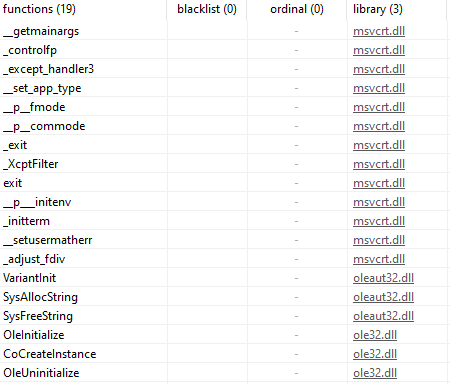

Imports Pasted image 20220620000227.pngPasted image 20220620000233.png

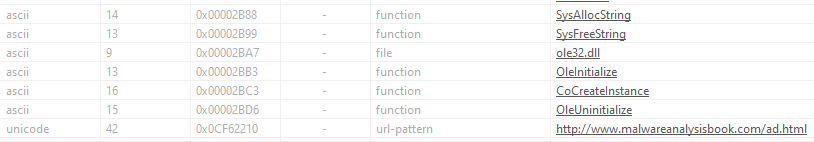

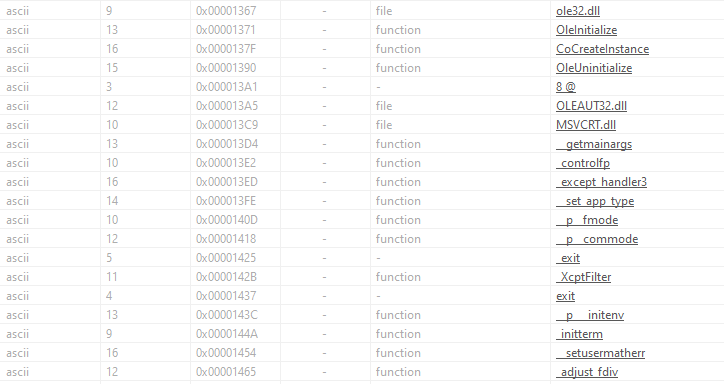

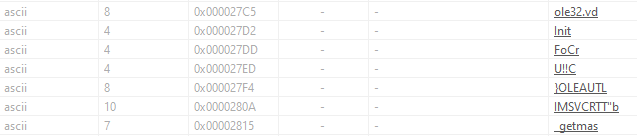

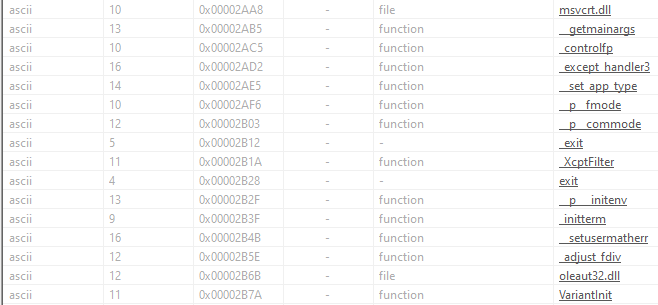

Strings Pasted image 20220620000307.pngPasted image 20220620000315.pngPasted image 20220620000324.pngPasted image 20220620000330.pngPasted image 20220620000337.png

Unpacking Process

  • As this is packed using FSG 1.0 which is well known, there are x96dbg scripts already available here and here.
Steps Screenshots
Step 1
Go to the script tab		 Pasted image 20220619233547.png
Step 2

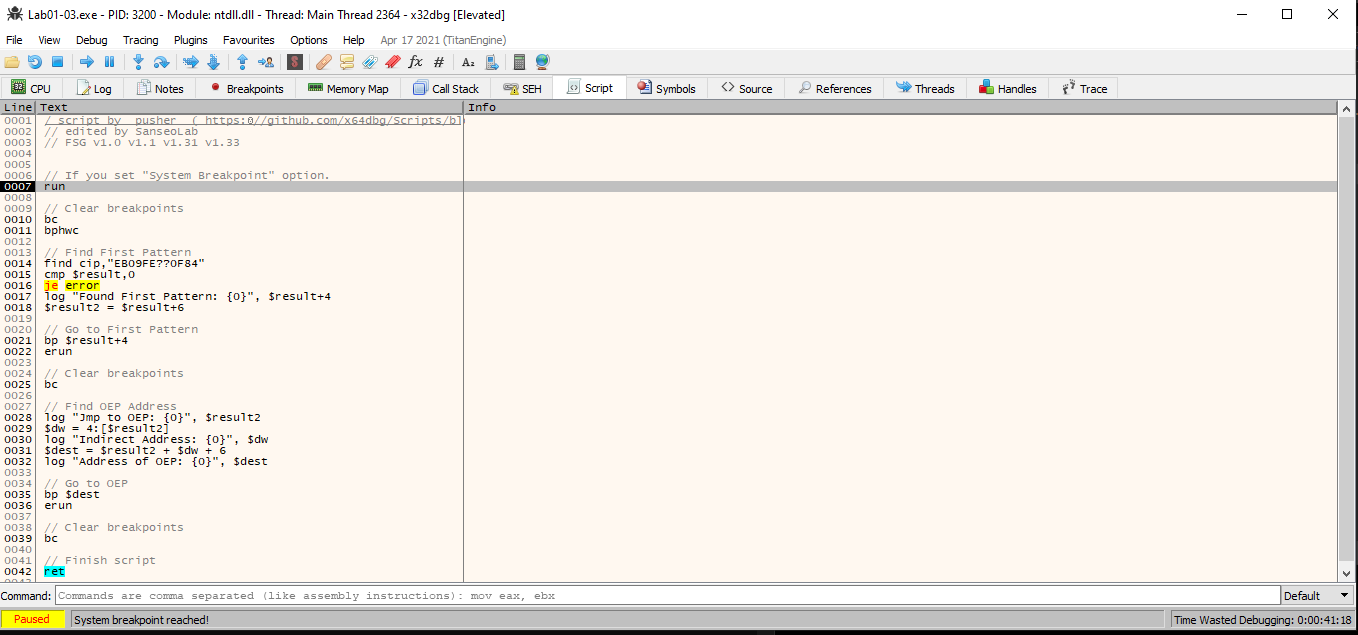

Load the script		 Pasted image 20220619233932.png
Step 3

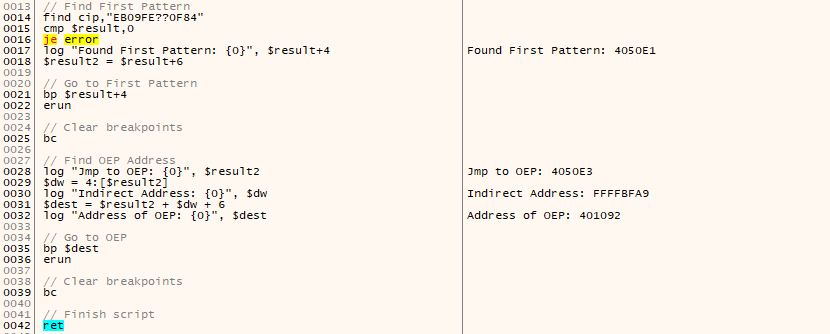

Run the script by hitting spacebar
As we can see on the right, Script was ran successfully and OEP is found		 Pasted image 20220619234003.png
Step 4
Run the Scylla Plugin		 Pasted image 20220619234253.png
Step 5

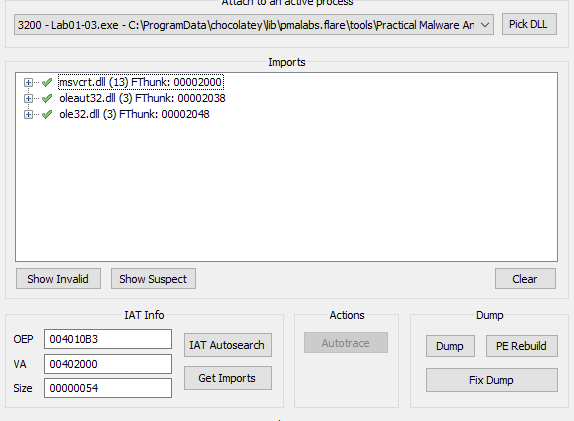

As can be seen on the left we do an initial dump of the unpacked executable		 Pasted image 20220619234545.png
Step 6

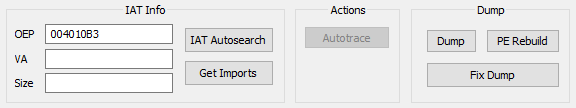

Do an IAT Autosearch
The IAT info fields will be filled when autosearch is successful.		 Pasted image 20220619234331.png
Step 7

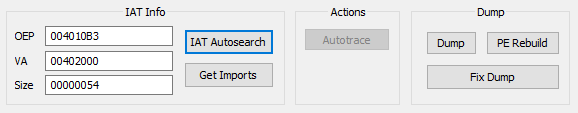

Get the imports to see if there are any broken imports		 Pasted image 20220619234410.png
Step 8
Lastly, make sure the imports are all good and fix the unpacked PE dump		 Pasted image 20220619234545.png

Lab 1-4

Analyze the file Lab01-04.exe.

Questions

Question 1.

Upload the Lab01-04.exe file to http://www.VirusTotal.com/. Does it match any existing antivirus definitions?

  • Yes, it was flagged as malicious by VirusTotal
Question 2.

Are there any indications that this file is packed or obfuscated? If so, what are these indicators? If the file is packed, unpack it if possible.

  • There are visible strings, imports and sections are normal and entropy is low thus suggesting that sample is not packed and not obfuscated.
Question 3.

When was this program compiled?

Binary Compile Time
Lab01-04.exe Fri Aug 30 22:26:59 2019 UTC
Extracted Binary Sun Feb 27 00:16:59 2011 UTC
Question 4.

Do any imports hint at this program’s functionality? If so, which imports are they and what do they tell you?

  • Lab01-04.exe
Imports Function
CreateRemoteThread
LoadLibraryA		 Dll Injection
OpenProcessToken
AdjustTokenPrivileges
GetModuleHandle
LookupPrivilegeValue		 Token Impersonation
OpenProcess, GetProcAddress Process Creation
MoveFileA, CreateFileA, GetWindowsDirectory File creation and modification
  • Extracted Binary File
Import Function
WinExec Execute File
URLDownloadToFileA Downloading from C2
Question 5.

What host- or network-based indicators could be used to identify this malware on infected machines?

  • Indicators of Compromise
Type Indicator
Host \system32\wupdmgr.exe
\winup.exe
Host winlogon.exe
Network http://www.practimalwareanalysis.com/updater.exe
  • Based on the host based indicators above, we can likely check host for file with the name of wupdmgr.exe in the system32 directory and for winup.exe. We can likely compare the hashes of these files with the hashes we obtained above.
  • It is likely, that there is a process creation going on, and the process targeted coule be winlogon.exe
  • Lastly, a connection is likely to be made to http://practicalmalwareanalysis.com/updater.exe to download updater.exe which would be executed by the malware.
Question 6.

This file has one resource in the resource section. Use Resource Hacker to examine that resource, and then use it to extract the resource. What can you learn from the resource?

  • Within the executable's resource there is another executable.
  • This is likely a two stage malware. Lab01-04.exe is likely used to load the binary that is in the resource.
  • The binary within Lab01-04.exe is likely a downloader that downloads from URL http://www.practicalmalwareanalysis.com/updater.exe

Screenshots

  • Lab01-04.exe
Purpose Evidence
VirusTotal link

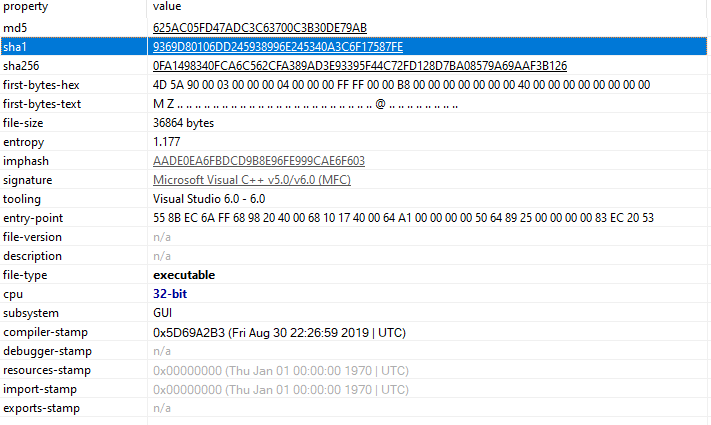

Classfication Pasted image 20220620104112.png

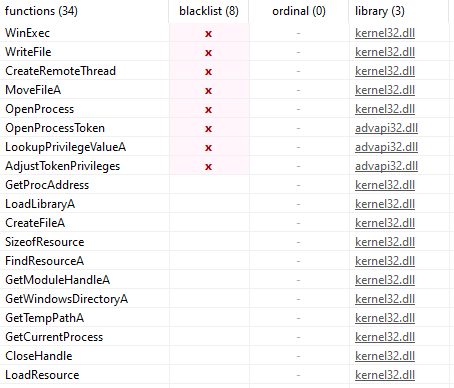

Imports Pasted image 20220620104152.pngPasted image 20220620104159.png

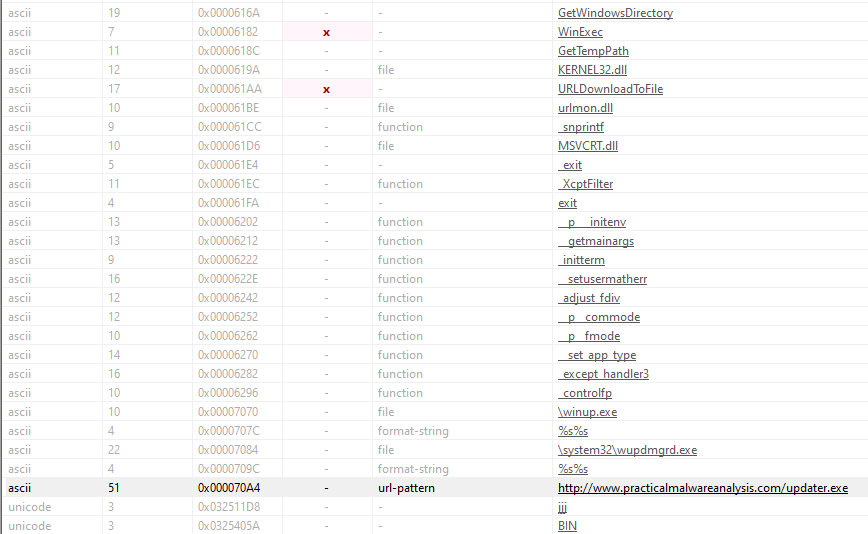

Strings Pasted image 20220620104224.pngPasted image 20220620104230.png
Resources Pasted image 20220620104238.png
  • Extracted Binary File
Purpose Evidence
VirusTotal link

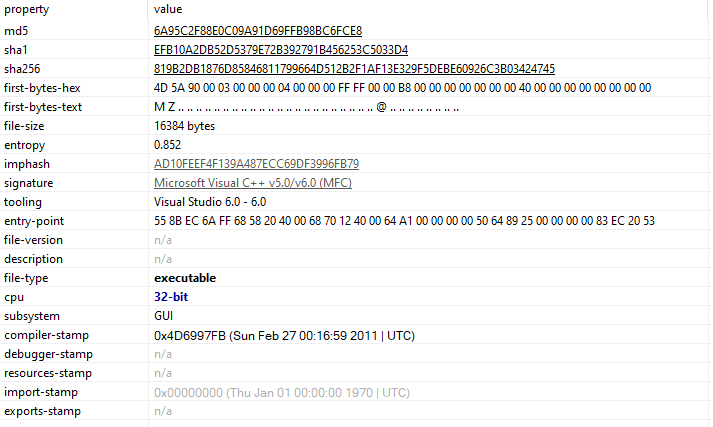

Classfication Pasted image 20220620104247.png

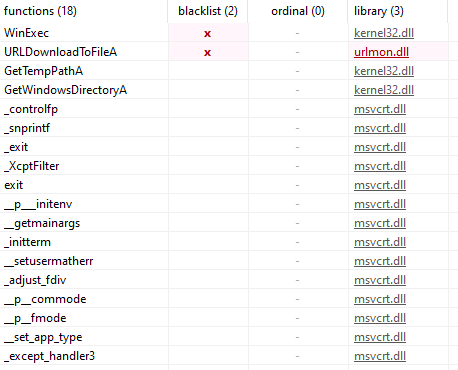

Imports Pasted image 20220620104254.pngPasted image 20220620104258.png

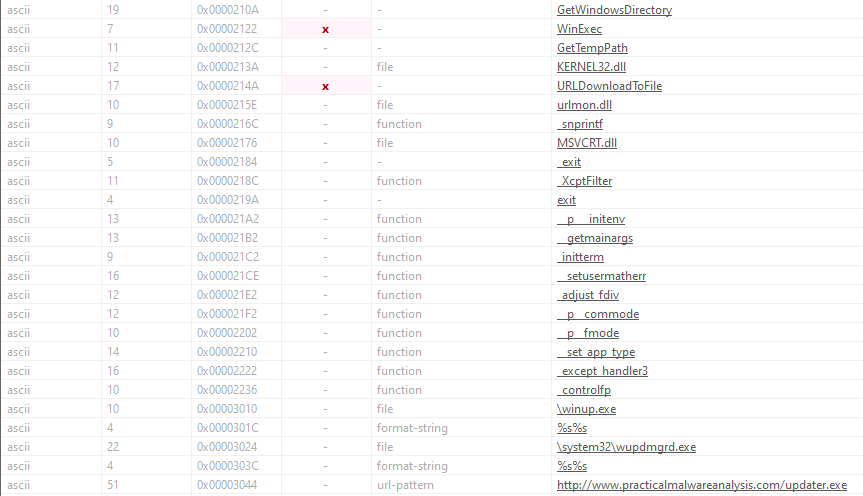

Strings Pasted image 20220620104311.png
